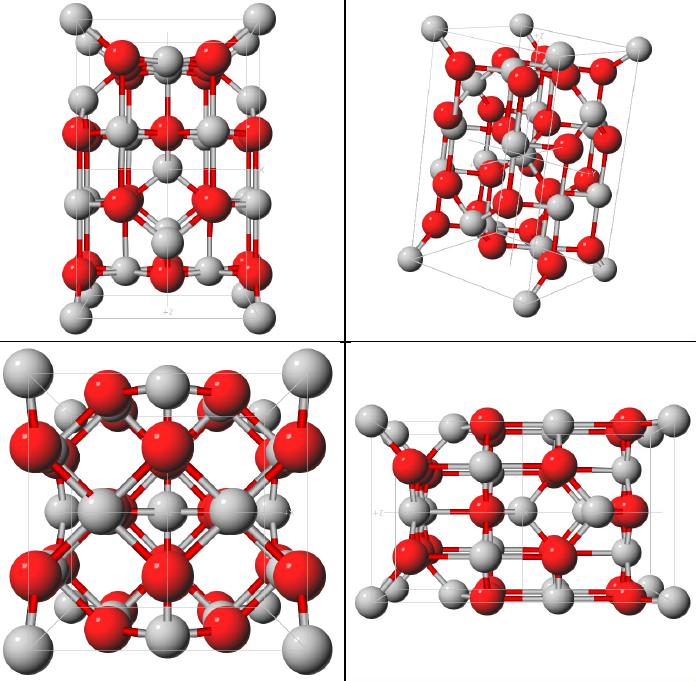

| Crystal Lattice Structures: | Creation Date: 25 Feb 2007 |
| Last Modified: 25 Feb 2007 |
You can now
| A1 | = | a X |
| A2 | = | a Y |
| A3 | = | ½ a X + ½ a Y + ½ c Z |
| B1 | = | 0 | (Mn-I) | (4a) | ||
| B2 | = | - 1/4 A1 + 1/4 A2 + 1/2 A3 | = | + 1/2 a Y + 1/4 c Z | (Mn-I) | (4a) |
| B3 | = | + 3/8 A1 - 3/8 A2 + 1/4 A3 | = | + 1/2 a X - 1/4 a Y + 1/8 c Z | (Mn-II) | (8d) |
| B4 | = | + 3/8 A1 + 1/8 A2 + 1/4 A3 | = | + 1/2 a X + 1/4 a Y + 1/8 c Z | (Mn-II) | (8d) |
| B5 | = | - 1/8 A1 - 3/8 A2 - 1/4 A3 | = | - 1/4 a X - 1/2 a Y - 1/8 c Z | (Mn-II) | (8d) |
| B6 | = | + 3/8 A1 - 3/8 A2 - 1/4 A3 | = | + 1/4 a X - 1/2 a Y - 1/8 c Z | (Mn-II) | (8d) |
| B7 | = | - z A1 + (y - z) A2 + 2 z A3 | = | + y a Y + z c Z | (O) | (16h) |
| B8 | = | - z A1 - (y + z) A2 + 2 z A3 | = | - y a Y + z c Z | (O) | (16h) |
| B9 | = | - (y + z - ¾) A1 - (z - ¼) A2 + (2 z - ½) A3 | = | - (y - ½) a X + (z - ¼) c Z | (O) | (16h) |
| B10 | = | + (y - z - ¼) A1 - (z - ¼) A2 + (2 z - ½) A3 | = | + (y - ½) a X + (z - ¼) c Z | (O) | (16h) |
| B11 | = | + (z - ¼) A1 + (y + z - ¾) A2 - (2 z - ½) A3 | = | + (y - ½) a Y - (z - ¼) c Z | (O) | (16h) |
| B12 | = | + (z - ¼) A1 - (y - z - ¼) A2 - (2 z - ½) A3 | = | - (y - ½) a Y - (z - ¼) c Z | (O) | (16h) |
| B13 | = | + (y + z) A1 + z A2 - 2 z A3 | = | + y a X - z c Z | (O) | (16h) |
| B14 | = | - (y - z) A1 + z A2 - 2 z A3 | = | - y a X - z c Z | (O) | (16h) |
Go back to the IIIb-VIIb Structures page.
Go back to Crystal Lattice Structure page.
| Structures indexed by: | This is a mirror of an old page created at the Naval Research Laboratory Center for Computational Materials Science The maintained successor is hosted at http://www.aflowlib.org/CrystalDatabase/ and published as M. Mehl et al., Comput. Mater. Sci. 136 (Supp.), S1-S828 (2017). |
