ReSi₂ Structure

You can now

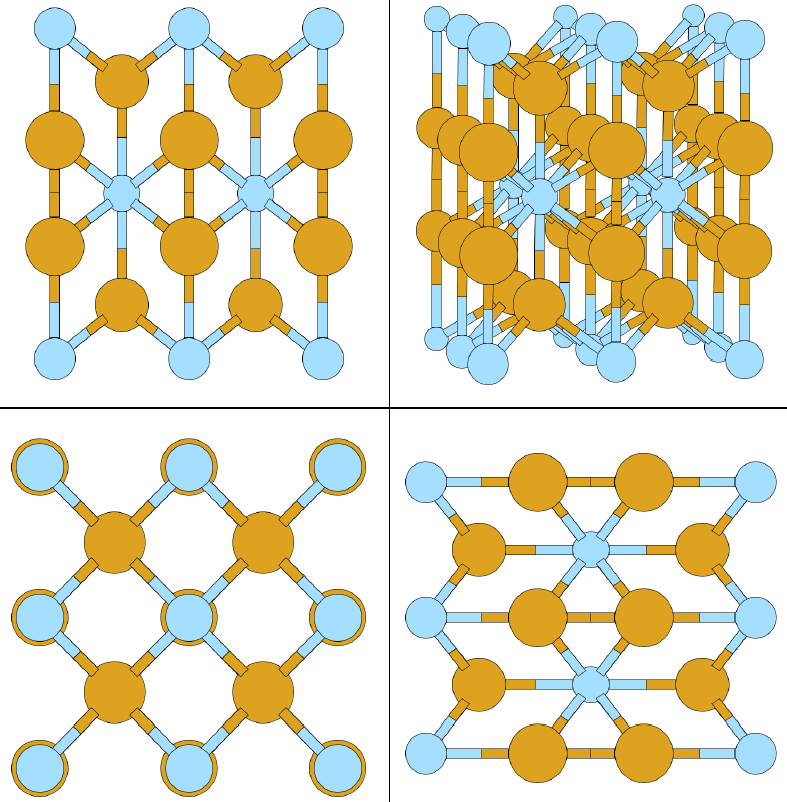

• see the structure from several perspectives;
• examine the structure with an external viewer; or
• download the coordinates of the atoms in these pictures in XYZ format.
• visualize the structure (Uses the JMOL Applet)

---

• Rotating this structure by 90^o about the X axis transforms it into the MoPt₂ structure.
• The previous version of page gave the wrong Cartesian coordinates for the (4i) sites.

---

• Prototype: ReSi₂
• Pearson Symbol: oI6
• Space Group: Immm (Cartesian and lattice coordinate listings available)
• Number: 71
• Primitive Vectors:

  A1	=	a X
  A2	=	b Y
  A3	=	½ a X + ½ b Y + ½ c Z

• Basis Vectors:

  B1	=		0		(Re)	(2a)
  B2	=	- z A1 - z A2 + 2 z A3	=	+ z c Z	(Si)	(4i)
  B3	=	+ z A1 + z A2 - 2 z A3	=	- z c Z	(Si)	(4i)

---
