βManganese (A13) Crystal Structure

You can now

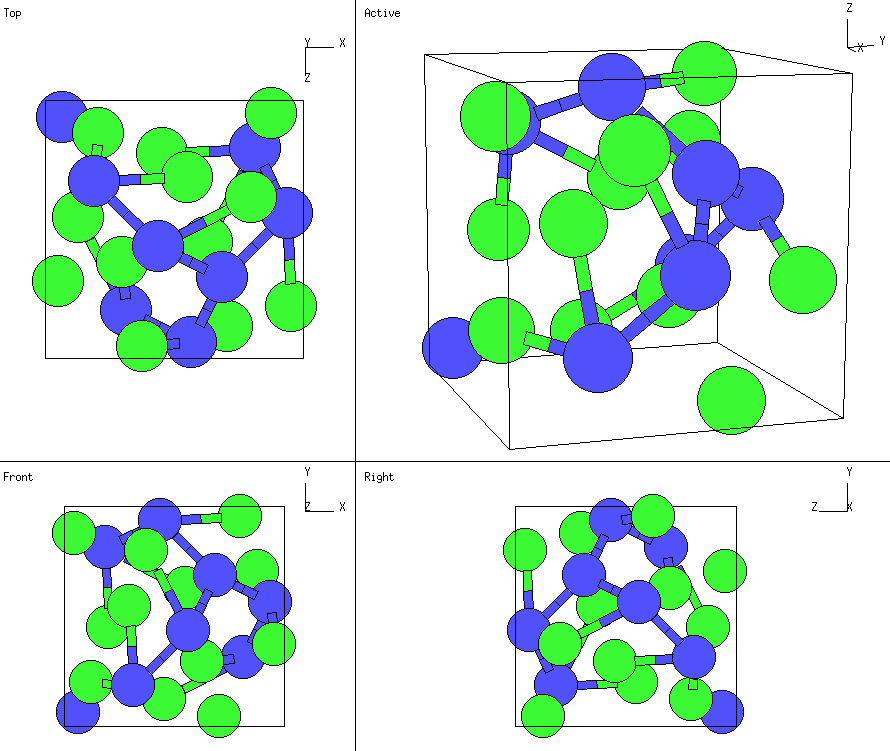

• see the structure from several perspectives;
• examine the structure with an external viewer; or
• download the coordinates of the atoms in these pictures in XYZ format.
• visualize the structure (Uses the JMOL Applet)

---

• Prototype: βMn
• Pearson Symbol: cP20
• Strukturbericht Designation: A13
• Space Group: P4₁32 (Cartesian and lattice coordinate listings available)
• Number: 213
• Reference: Donohue The Structures of the Elements, pp. 191-199.
• Other Elements with this Structure: None
• Primitive Vectors:

  A1	=	a X
  A2	=	a Y
  A3	=	a Z

• Basis Vectors:

  Since this is a simple cubic unit cell, we will only list the Cartesian coordinates of the atoms in the basis.

  B1	=	+ x1 a X + x1 a Y + x1 a Z	(8c)
  B2	=	+ (¾ - x1) a X + (¾ - x1) a Y + (¾ - x1) a Z	(8c)
  B3	=	+ (½ + x1) a X + (½ - x1) a Y - x1 a Z	(8c)
  B4	=	+ (¼ - x1) a X + (¾ + x1) a Y + (¼ + x1) a Z	(8c)
  B5	=	- x1 a X + (½ + x1) a Y + (½ - x1)a Z	(8c)
  B6	=	+ (¼ + x1) a X + (¼ - x1) a Y + (¾ + x1) a Z	(8c)
  B7	=	+ (½ - x1) a X + - x1 a Y + (½ + x1)a Z	(8c)
  B8	=	+ (¾ + x1) a X + (¼ + x1) a Y + (¼ - x1) a Z	(8c)
  B9	=	+ 1/8 a X + x2 a Y + (¼ + x2) a Z	(12d)
  B10	=	+ 3/8 a X - x2 a Y + (¾ + x2) a Z	(12d)
  B11	=	+ 7/8 a X + (½ + x2) a Y + (¼ - x2) a Z	(12d)
  B12	=	+ 5/8 a X + (½ - x2) a Y + (¾ - x2) a Z	(12d)
  B13	=	+ (¼ + x2) a X + 1/8 a Y + x2 a Z	(12d)
  B14	=	+ (¾ + x2) a X + 3/8 a Y - x2 a Z	(12d)
  B15	=	+ (¼ - x2) a X + 7/8 a Y + (½ + x2) a Z	(12d)
  B16	=	+ (¾ - x2) a X + 5/8 a Y + (½ - x2) a Z	(12d)
  B17	=	+ x2 a X + (¼ + x2) a Y + 1/8 a Z	(12d)
  B18	=	- x2 a X + (¾ + x2) a Y + 3/8 a Z	(12d)
  B19	=	+ (½ + x2) a X + (¼ - x2) a Y + 7/8 a Z	(12d)
  B20	=	+ (½ - x2) a X + (¾ - x2) a Y + 5/8 a Z	(12d)

---
