The γCuTi (B11) Structure

You can now

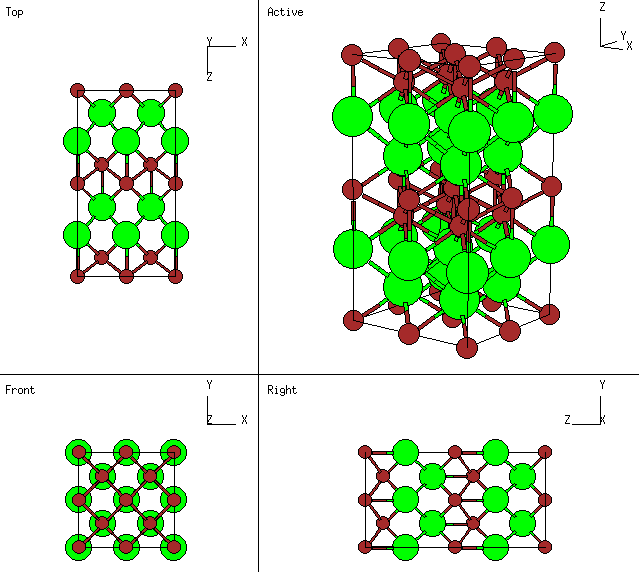

• see the structure from several perspectives;
• examine the structure with an external viewer; or
• download the coordinates of the atoms in these pictures in XYZ format.
• visualize the structure (Uses the JMOL Applet)

---

• A lattice with tetragonal symmetry. When c = 2 a, x₁ = 1/8, and x₂ = 5/8, the atoms are on the sites of a body-centered cubic lattice. If, on the other hand, c = 2 sqrt(2) a, with the same x_i, the atoms are on the site of a face-centered cubic lattice. This is the phase that Lu et al. refer to as ``Z2''.
• 9 Jan 2009: The positions of the (2c) sites are non-standard. Properly the Wyckoff (2c) positions are at +/- (1/4,1/4,x), not +/- (1/4,-1/4,x). The space group and position files are correct for the structure as written here. In the near future we will correct this page so that it follows the conventional definition.

---

• Prototype: γCuTi
• Pearson Symbol: tP4
• Strukturbericht Designation: B11
• Space Group: P4/nmm (Cartesian and lattice coordinate listings available)
• Number: 129
• Other Compounds with this Structure: AuCu, AlRe
• Primitive Vectors:

  A1	=	a X
  A2	=	a Y
  A3	=	c Z

• Basis Vectors:

  B1	=	- ¼ A1 + ¼ A2 + x1 A3	=	- ¼ a X + ¼ a Y + x1 c Z	(2c)	(Cu)
  B2	=	+ ¼ A1 - ¼ A2 - x1 A3	=	+ ¼ a X - ¼ a Y - x1 c Z	(2c)	(Cu)
  B3	=	- ¼ A1 + ¼ A2 + x2 A3	=	- ¼ a X + ¼ a Y + x2 c Z	(2c)	(Ti)
  B4	=	+ ¼ A1 - ¼ A2 - x2 A3	=	+ ¼ a X - ¼ a Y - x2 c Z	(2c)	(Ti)

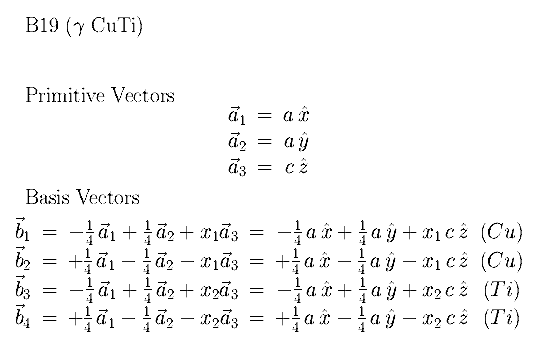

See these vectors in LaTeX output format.

---
