Crystal Lattice Structures: Creation Date: 18 Apr 1997
Last Modified: 21 Oct 2004

The FeSi (B20) Structure

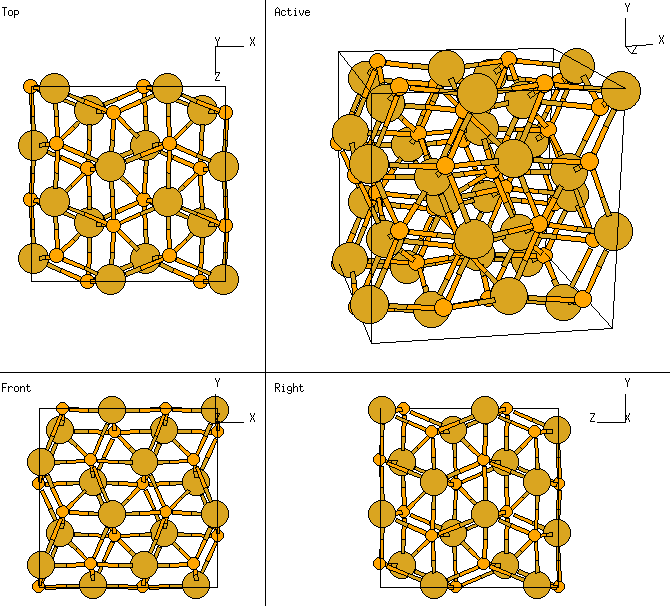

Picture of lattice; Click for Big Picture

You can now

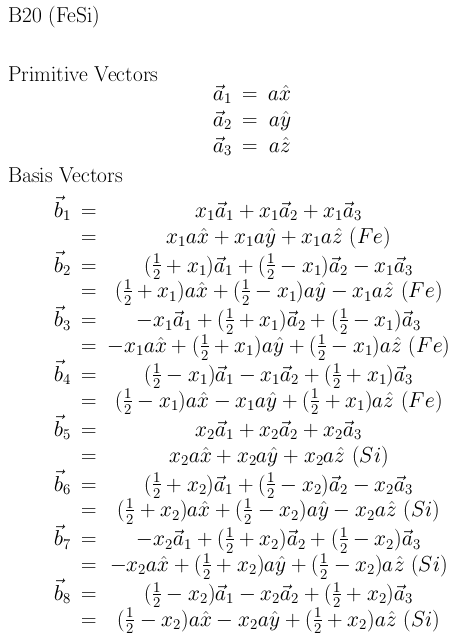

See these vectors in LaTeX output format.


Go back to the simple cubic and related structures page.

Go back to Crystal Lattice Structure page.

Structures indexed by: This is a mirror of an old page created at the
Naval Research Laboratory
Center for Computational Materials Science


The maintained successor is hosted at
http://www.aflowlib.org/CrystalDatabase/
and published as
M. Mehl et al., Comput. Mater. Sci. 136 (Supp.), S1-S828 (2017).
