The Thallium Fluoride (B24) Structure

You can now

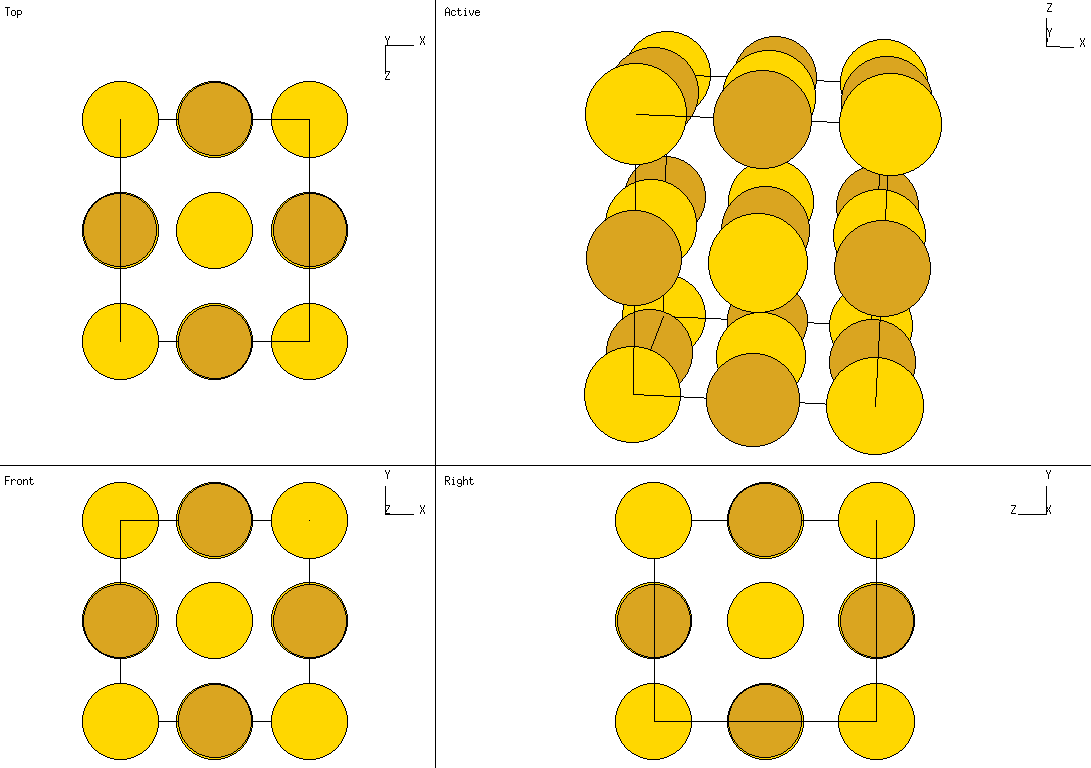

• see the structure from several perspectives;
• examine the structure with an external viewer; or
• download the coordinates of the atoms in these pictures in XYZ format.
• visualize the structure (Uses the JMOL Applet)

---

• This is an orthorhombic distortion of the NaCl (B1) structure. Set a = b = c to get the B1 structure.

---

• Prototype: TlF
• Pearson Symbol: oF8
• Strukturbericht Designation: B24
• Space Group: Fmmm (Cartesian and lattice coordinate listings available)
• Number: 69
• Other compounds with this Structure:
• Primitive Vectors:

  A1	=	½ b Y + ½ c Z
  A2	=	½ a X + ½ c Z
  A3	=	½ a X + ½ b Y

• Basis Vectors:

  B1	=	0			(Tl)	(4a)
  B2	=	+ ½ A1 + ½ A2 - ½ A3	=	½ c Z	(F)	(4b)

---
