Crystal Lattice Structures:	Creation Date: 29 Sep 1995
	Last Modified: 19 Dec 2008

The Fluorite (C1) Structure

You can now

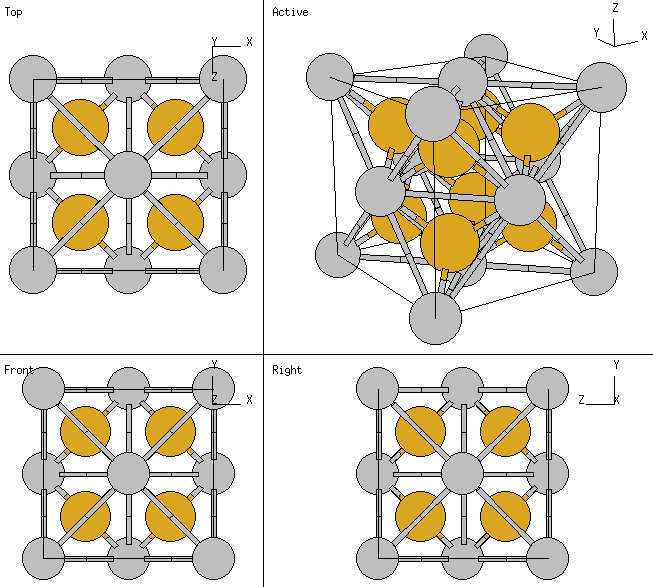

• see the structure from several perspectives;
• examine the structure with an external viewer; or
• download the coordinates of the atoms in these pictures in XYZ format.
• visualize the structure (Uses the JMOL Applet)

---

• This structure is closely related to the C1_b Half-Heusler structure.

---

• Prototype: CaF₂
• Pearson Symbol: cF12
• Strukturbericht Designation: C1
• Space Group: Fm3m (Cartesian and lattice coordinate listings available)
• Number: 225
• Reference: Wyckoff, Vol. I, pp. 239-242
• Other compounds with this Structure: AmO₂, AuAl₂, AuIn₂, BaF₂, Be₂B, CO₂, CdF₂, CeO₂, CoSi₂, EuF₂, HgF₂, Ir₂P, Li₂O, Na₂O, NiSi₂, PtAl₂, Rb₂O, SrCl₂, SrCl₂, SrF₂, ThO₂, ZrO₂
• Primitive Vectors:

  A1	=	½ a Y + ½ a Z
  A2	=	½ a X + ½ a Z
  A3	=	½ a X + ½ a Y

• Basis Vectors:

  B1	=		0		(4a)	(Ca)
  B2	=	+ ¼ A1 + ¼ A2 + ¼ A3	=	+ ¼ a X + ¼ a Y + ¼ a Z	(8c)	(F)
  B3	=	- ¼ A1 - ¼ A2 - ¼ A3	=	- ¼ a X - ¼ a Y - ¼ a Z	(8c)	(F)

See these vectors in LaTeX output format.

---
