Crystal Lattice Structures:	Reference Date: 17 May 2003
	Last Modified: 21 Oct 2004

The BPO₄ (H0₇) Structure

You can now

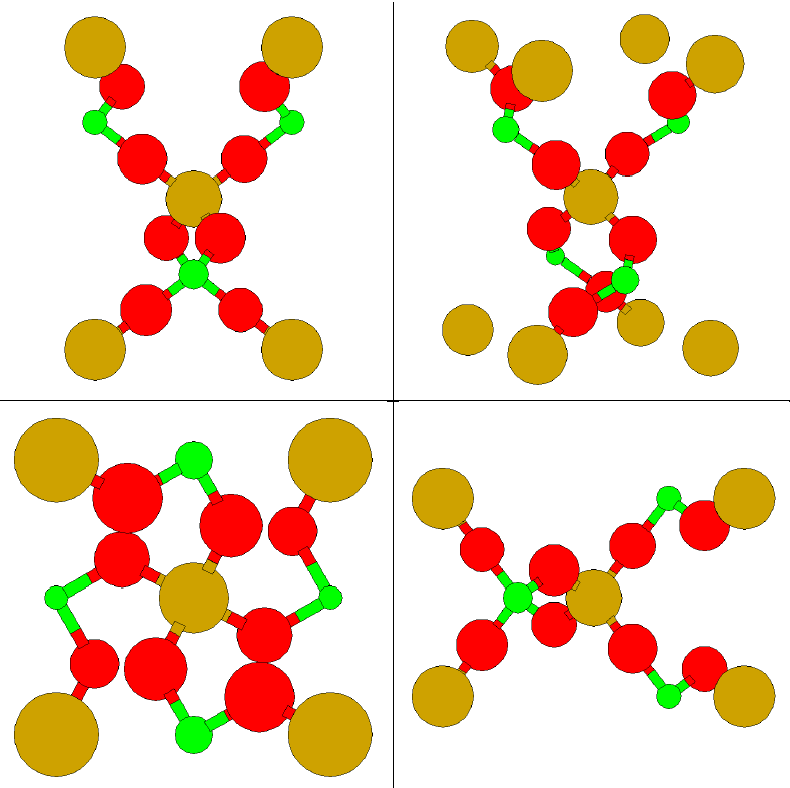

• see the structure from several perspectives;
• examine the structure with an external viewer; or
• download the coordinates of the atoms in these pictures in XYZ format.
• visualize the structure (Uses the JMOL Applet)

---

• Prototype: BPO₄
• Pearson Symbol: tI12
• Strukturbericht Designation: H0₇
• Space Group: I4 (Cartesian and lattice coordinate listings available)
• Number: 82
• Reference: Strukturbericht, Vol III, p. 92-3.
• Primitive Vectors:

  A1	=	a X
  A2	=	a Y
  A3	=	½ a X + ½ a Y + ½ c Z

• Basis Vectors:

  B1	=		0		(P)	(2a)
  B2	=	- ¼ A1 + ¼ A2 + ½ A3	=	½ a Y + ¼ c Z	(B)	(2c)
  B3	=	+ (x-z) A1 + (y-z) A2 + 2 z A3	=	+ x a X + y a Y + z c Z	(O)	(8g)
  B4	=	- (x+z) A1 - (y+z) A2 + 2 z A3	=	- x a X - y a Y + z c Z	(O)	(8g)
  B5	=	+ (y+z) A1 - (x-z) A2 - 2 z A3	=	+ y a X - x a Y - z c Z	(O)	(8g)
  B6	=	+ (z-y) A1 + (x+z) A2 - 2 z A3	=	- y a X + x a Y - z c Z	(O)	(8g)

---
