The 0201 [(La,Ba)₂CuO₄] High-T_c Structure

You can now

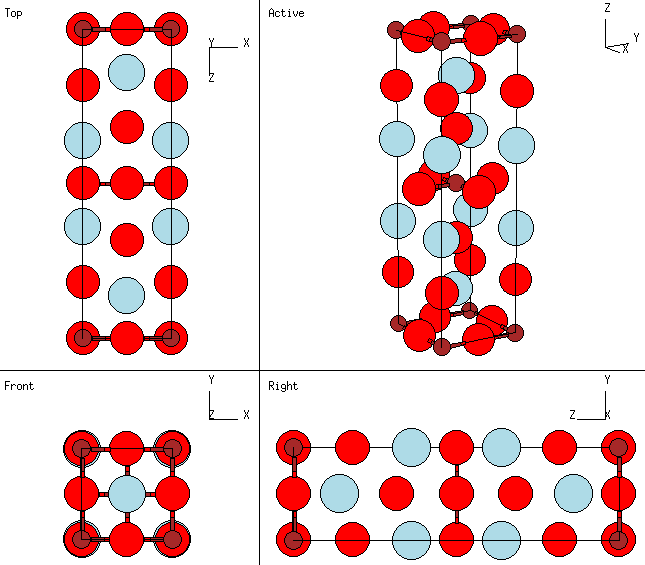

• see the structure from several perspectives;
• examine the structure with an external viewer; or
• download the coordinates of the atoms in these pictures in XYZ format.
• visualize the structure (Uses the JMOL Applet)

---

• The original ``high'' temperature (30K) superconductor found by Bednorz and Mueller. Barium and Lanthanum atoms are distributed randomly on the Lanthanum sublattice. The ground state structure of the parent compound, La₂CuO₄, is an orthorhombic distortion of this unit cell.

---

• Prototype: (La,Ba)₂CuO₄
• Pearson Symbol: tI14
• Space Group: I4/mmm (Cartesian and lattice coordinate listings available)
• Number: 139
• Other Compounds with this Structure: (La,Sr)₂CuO₄, high temperature La₂CuO₄
• Primitive Vectors:

  A1	=	a X
  A2	=	a Y
  A3	=	½ a X + ½ a Y + ½ c Z

• Basis Vectors:

  B1	=		0		(Cu)	(2a)
  B2	=	- z1 A1 - z1 A2 + 2 z1 A3	=	+ z1 c Z	(La or Ba)	(4e)
  B3	=	+ z1 A1 + z1 A2 - 2 z1 A3	=	- z1 c Z	(La or Ba)	(4e)
  B4	=	½ A1	=	½ a X	(O I)	(4c)
  B5	=	½ A2	=	½ a Y	(O I)	(4c)
  B6	=	- z2 A2 - z2 A2 + 2 z2 A3	=	+ z2 c Z	(O II)	(4e)
  B7	=	+ z2 A1 + z2 A2 - 2 z2 A3	=	- z2 c Z	(O II)	(4e)

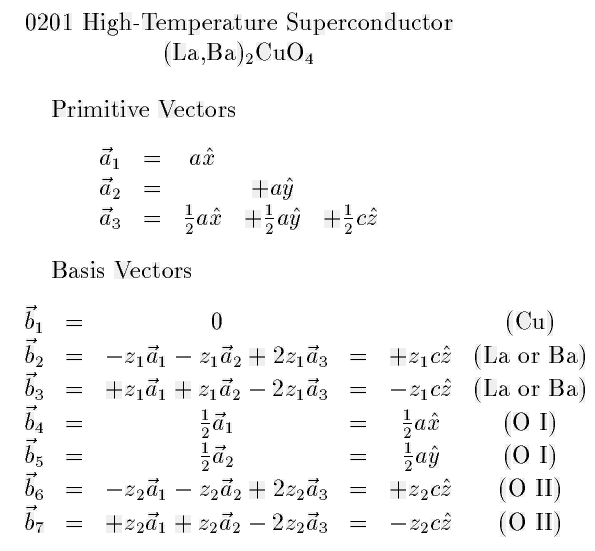

See these vectors in LaTeX output format.

---
