Crystal Lattice Structures:	Creation Date:  6 Jun 2006
	Last Modified:  6 June 2006

The Te₄Ti₅ Structure

You can now

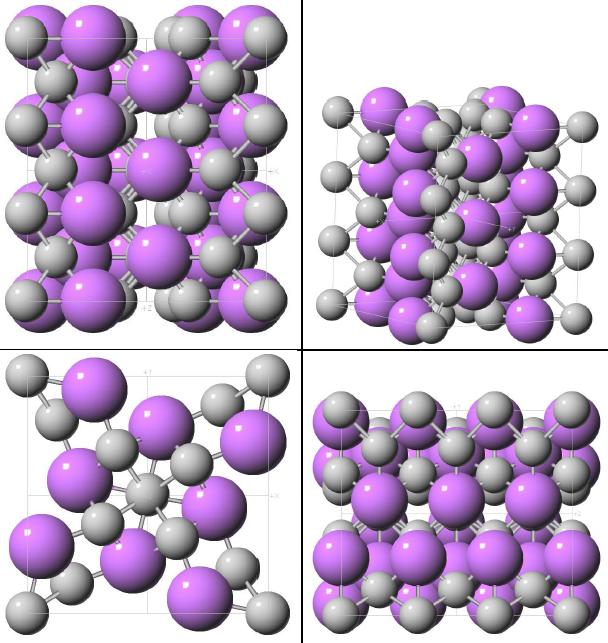

• see the structure from several perspectives;
• examine the structure with an external viewer; or
• download the coordinates of the atoms in these pictures in XYZ format.
• visualize the structure (Uses the JMOL Applet)

---

• Prototype: Te₄Ti₅
• Pearson Symbol: tI18
• Strukturbericht Designation: none
• Space Group: I4/m (Cartesian and lattice coordinate listings available)
• Number: 87
• References: Pearson's Handbook, Vol. IV., p. 5321
  Pearson, Alloys, pp. 732-3.
• Other compounds with this structure: As₄Mo₅, As₄Ta₅, As₄Ti₂W₃, Nb₅Sb₄, Nb₅Se₄, Nb₅Te₄, S₄V₅, Sb₄V₅, Se₄V₅, Te₄Zr₅
• Primitive Vectors:

  A1	=	a X
  A2	=	a Y
  A3	=	½ a X + ½ a Y + ½ c Z

• Basis Vectors:

  B1	=		0		(Ti-I)	(2a)
  B2	=	+ xTe A1 + yTe A2	=	+ xTe a X + yTe a Y	(Te)	(8h)
  B3	=	- yTe A1 + xTe A2	=	- yTe a X + xTe a Y	(Te)	(8h)
  B4	=	- xTe A1 - yTe A2	=	- xTe a X - yTe a Y	(Te)	(8h)
  B5	=	+ yTe A1 - xTe A2	=	+ yTe a X - xTe a Y	(Te)	(8h)
  B6	=	+ xTi A1 + yTi A2	=	+ xTi a X + yTi a Y	(Ti-II)	(8h)
  B7	=	- yTi A1 + xTi A2	=	- yTi a X + xTi a Y	(Ti-II)	(8h)
  B8	=	- xTi A1 - yTi A2	=	- xTi a X - yTi a Y	(Ti-II)	(8h)
  B9	=	+ yTi A1 - xTi A2	=	+ yTi a X - xTi a Y	(Ti-II)	(8h)

---
