The Moissanite-6H CSi Crystal Structure

You can now

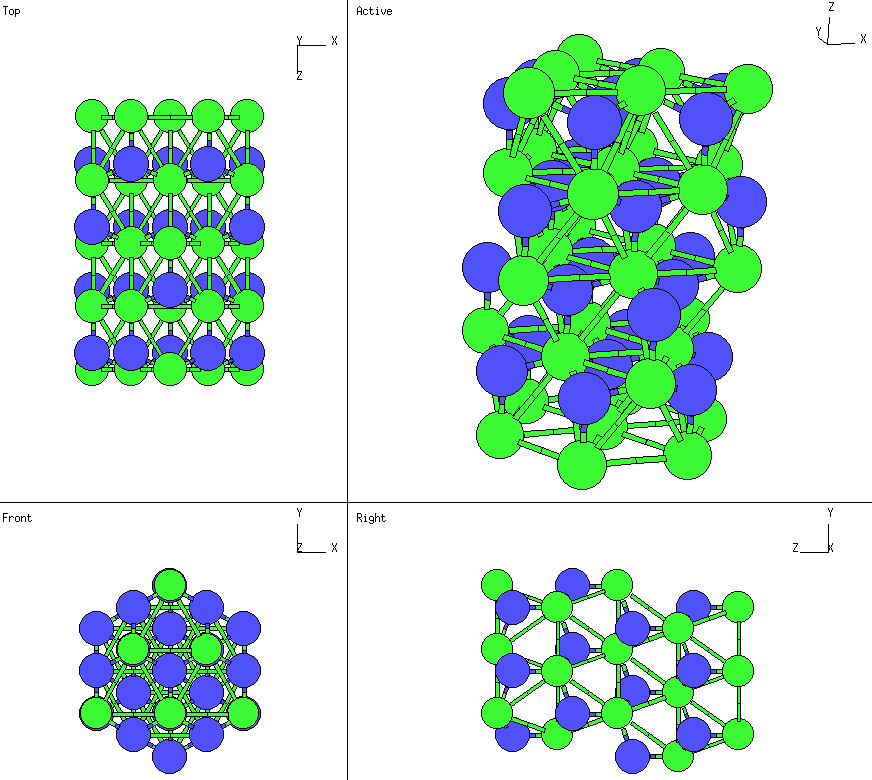

• see the structure from several perspectives;
• examine the structure with an external viewer; or
• download the coordinates of the atoms in these pictures in XYZ format.
• visualize the structure (Uses the JMOL Applet)

---

• This is an alternate stacking (ABCACB) for tetrahedral structures. Compare this to Zincblende (ABCABC), Moissanite-4H (ABAC), and Wurtzite (ABABAB). The 6H refers to the fact that there are 6 CSi dimers in a hexagonal unit cell. Zincblende is denoted 3C, and Wurtzite is 2H.

---

• Prototype: CSi
• Pearson Symbol: hP12
• Space Group: P6₃mc (Cartesian and lattice coordinate listings available)
• Number: 186
• Reference: Villars and Calvert, Pearson's Handbook Vol. II, p. 2006.
• Primitive Vectors:

  A1	=	½ a X - ½ 3½ a Y
  A2	=	½ a X + ½ 3½ a Y
  A3	=	c Z

• Basis Vectors:

  B1	=		0		(Si-I)	(2a)
  B2	=	½ A3	=	½ c Z	(Si-I)	(2a)
  B3	=	z1 A3	=	z1 c Z	(C-I)	(2a)
  B4	=	(½ + z1) A3	=	(½ + z1) c Z	(C-I)	(2a)
  B5	=	1/3 A1 + 2/3 A2 + z2 A3	=	½ a X + 12-½ a Y + z2 c Z	(Si-II)	(2b)
  B6	=	2/3 A1 + 1/3 A2 + (½ + z2) A3	=	½ a X - 12-½ a Y + (½ + z2) c Z	(Si-II)	(2b)
  B7	=	1/3 A1 + 2/3 A2 + z3 A3	=	½ a X + 12-½ a Y + z3 c Z	(C-II)	(2b)
  B8	=	2/3 A1 + 1/3 A2 + (½ + z3) A3	=	½ a X - 12-½ a Y + (½ + z3) c Z	(C-II)	(2b)
  B9	=	1/3 A1 + 2/3 A2 + z4 A3	=	½ a X + 12-½ a Y + z4 c Z	(Si-III)	(2b)
  B10	=	2/3 A1 + 1/3 A2 + (½ + z4) A3	=	½ a X - 12-½ a Y + (½ + z4) c Z	(Si-III)	(2b)
  B11	=	1/3 A1 + 2/3 A2 + z5 A3	=	½ a X + 12-½ a Y + z5 c  Z	(C-III)	(2b)
  B12	=	2/3 A1 + 1/3 A2 + (½ + z5) A3	=	½ a X - 12-½ a Y + (½ + z5) c  Z	(C-III)	(2b)

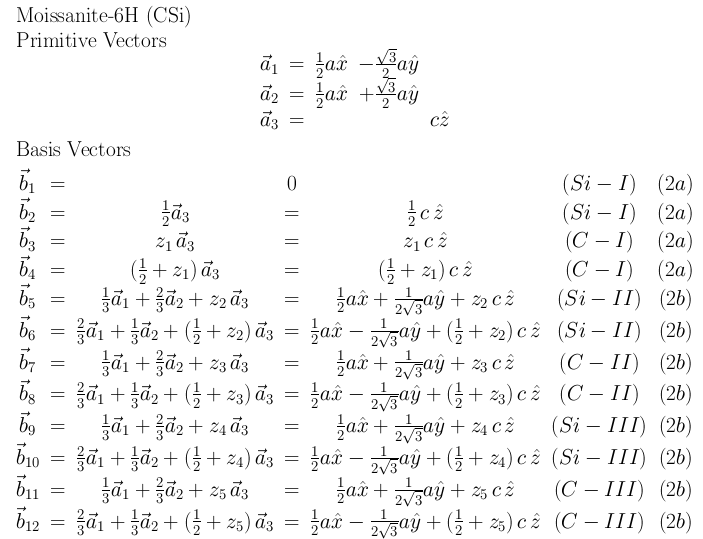

See these vectors in LaTeX output format.

---
