The Au₅Mn₂ Structure

You can now

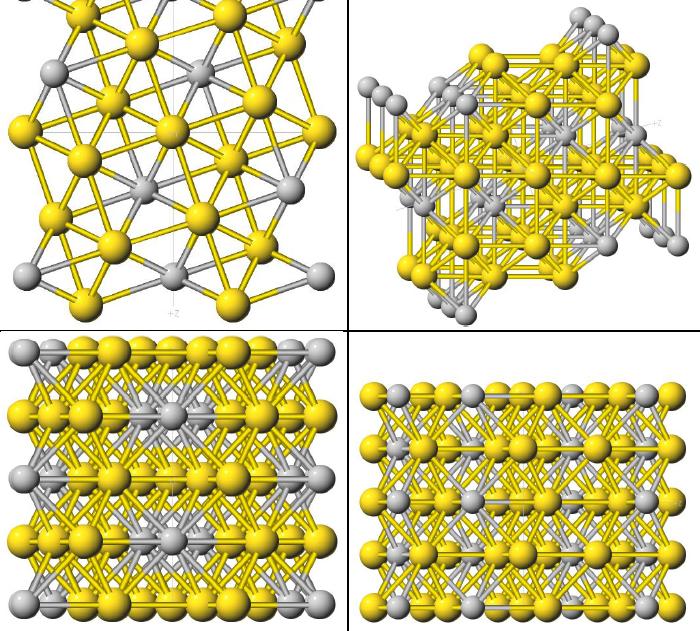

• see the structure from several perspectives;
• examine the structure with an external viewer; or
• download the coordinates of the atoms in these pictures in XYZ format.
• visualize the structure (Uses the JMOL Applet)

---

• As noted by Pearson, this structure is cubic close-packed. As such, it is frequently used for cluster expansion models.

---

• Prototype: Au₅Mn₂
• Pearson Symbol: mC14
• Strukturbericht Designation: none
• Space Group: C2/m (Cartesian and lattice coordinate listings available)
• Number: 12
• References:
  • Pearson's Alloys pp. 346-7.
  • Pearson's Handbook, Vol. I, p. 1318.
• Primitive Vectors (unique monoclinic axis "b"):

  A1	=	+ ½ a X	- ½ b Y
  A2	=	+ ½ a X	+ ½ b Y
  A3	=	+ c cos β X	+ c sin β Z

• Basis Vectors:

  B1	=		0		(Au-I)	(2a)
  B2	=	+ x1 A1 + x1 A2 + z1 A3	=	+ ( x1 a + z1 c cos β ) X + z1 sin β Z	(Au-II)	(4i)
  B3	=	- x1 A1 - x1 A2 - z1 A3	=	- ( x1 a + z1 c cos β ) X - z1 sin β Z	(Au-II)	(4i)
  B4	=	+ x2 A1 + x2 A2 + z2 A3	=	+ ( x2 a + z2 c cos β ) X + z2 sin β Z	(Au-III)	(4i)
  B5	=	- x2 A1 - x2 A2 - z2 A3	=	- ( x2 a + z2 c cos β ) X - z2 sin β Z	(Au-III)	(4i)
  B6	=	+ x3 A1 + x3 A2 + z3 A3	=	+ ( x3 a + z3 c cos β ) X + z3 sin β Z	(Mn)	(4i)
  B7	=	- x3 A1 - x3 A2 - z3 A3	=	- ( x3 a + z3 c cos β ) X - z3 sin β Z	(Mn)	(4i)

---
