The Ferroelectric LiNbO₃ Structure

You can now

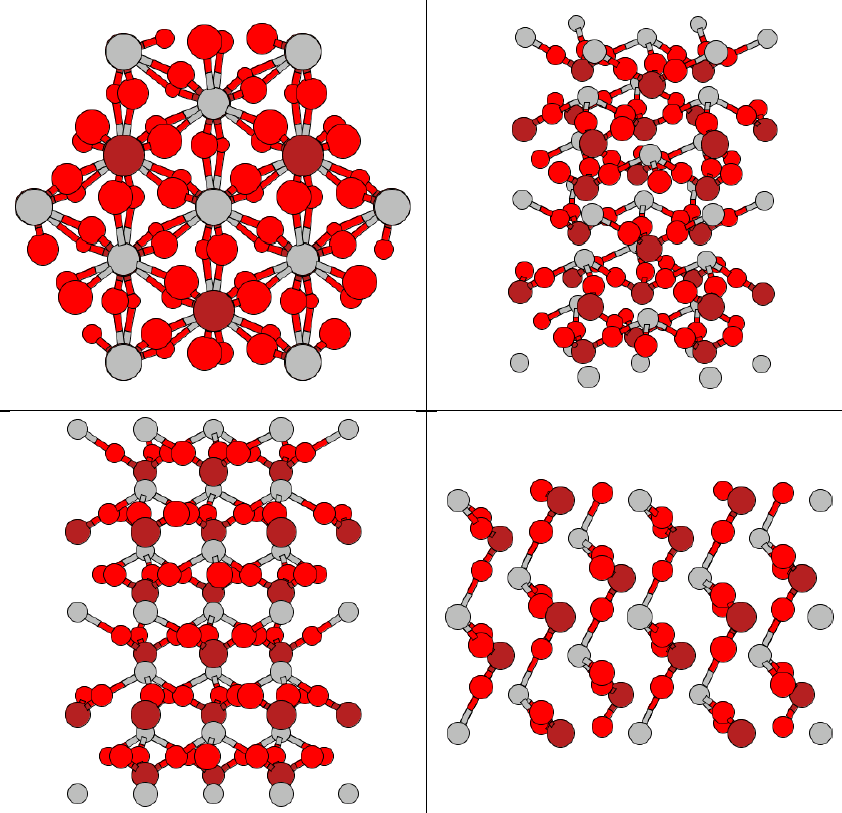

• see the structure from several perspectives;
• examine the structure with an external viewer; or
• download the coordinates of the atoms in these pictures in XYZ format.
• visualize the structure (Uses the JMOL Applet)

---

• This is the ferroelectric phase, which exists below 1430K. There is also a paraelectric phase.
• We take the positions from the article by Boysen and Altorfer, along with the supporting Acta Cryst. database. Since the position of the Li atoms, particularly, is uncertain, we use the first set of coordinates in the database.
• Note that we use the hexagonal lattice coordinates a and c in a rhombohedral setting.
• Our rhombohedral position coordinates for the oxygen atoms are related to the hexagonal coordinates given in the literature by the transformation:

  • x_rhombohedral = x_hex - 3^-½ y_hex + z_hex
  • y_rhombohedral = 2 (3^-½) y_hex + z_hex
  • z_rhombohedral = - x_hex - 3^-½ y_hex + z_hex
• This reduces to a double unit cell version of the cubic perovskite structure in the special case:
  • c/a = 6^½, so that the angle between the primitive vectors is 60°. (In LiNbO₃ the angle is about 56°.)
  • z₁ = ¼
  • z₂ = 0
  • x₃ = ½
  • y₃ = 0
  • z₃ = 0
• 24 March 2009: As pointed out by Alessandro Stroppa, the coordinates of the last three Oxygen atoms were permuted cyclically in (x,y,z), rather than anti-cyclically. This has now been corrected. The files used to generate the pictures were always correct, and have not been changed.

---

• Prototype: LiNbO₃ (ferroelectric)
• Pearson Symbol: hR10
• Space Group: R3c (Cartesian and lattice coordinate listings available)
• Number: 161
• Reference: H. Boysen and F. Altorfer, Acta Cryst. B 50, 405-414 (1994).
• Primitive Vectors:

  A1	=	+ ½ a X - 12-½ a Y + c/3 Z
  A2	=	3-½ a Y + c/3 Z
  A1	=	- ½ a X - 12-½ a Y + c/3 Z

• Basis Vectors:

  B1	=	z1 A1 + z1 A2 + z1 A3	=	z1 c Z	(Li)	(2a)
  B2	=	(z1 + ½) A1 + (z1 + ½) A2 + (z1 + ½) A3	=	(z1 + ½) c Z	(Li)	(2a)
  B3	=	z2 A1 + z2 A2 + z2 A3	=	z2 c Z	(Nb)	(2a)
  B4	=	(z2 + ½) A1 + (z2 + ½) A2 + (z2 + ½) A3	=	(z2 + ½) c Z	(Nb)	(2a)
  B5	=	+ x3 A1 + y3 A2 + z3 A3	=	½ (x3 - z3) a X - 12-½ (x3 - 2 y3 + z3) a Y + 1/3 (x3 + y3 + z3) c Z	(O)	(6b)
  B6	=	+ y3 A1 + z3 A2 + x3 A3	=	½ (y3 - x3) a X - 12-½ (y3 - 2 z3 + x3) a Y + 1/3 (x3 + y3 + z3) c Z	(O)	(6b)
  B7	=	+ z3 A1 + x3 A2 + y3 A3	=	½ (z3 - y3) a X - 12-½ (z3 - 2 x3 + y3) a Y + 1/3 (x3 + y3 + z3) c Z	(O)	(6b)
  B8	=	+ (y3 + ½) A1 + (x3 + ½) A2 + (z3 + ½) A3	=	½ (y3 - z3) a X + 12-½ (2 x3 - y3 - z3) a Y + [1/3 (x3 + y3 + z3) + ½] c Z	(O)	(6b)
  B9	=	+ (x3 + ½) A1 + (z3 + ½) A2 + (y3 + ½) A3	=	½ (x3 - y3) a X + 12-½ (2 z3 - x3 - y3) a Y + [1/3 (x3 + y3 + z3) + ½] c Z	(O)	(6b)
  B10	=	+ (z3 + ½) A1 + (y3 + ½) A2 + (x3 + ½) A3	=	½ (z3 - x3) a X + 12-½ (2 y3 - z3 - x3) a Y + [1/3 (x3 + y3 + z3) + ½] c Z	(O)	(6b)

---
