The βPu Structure

You can now

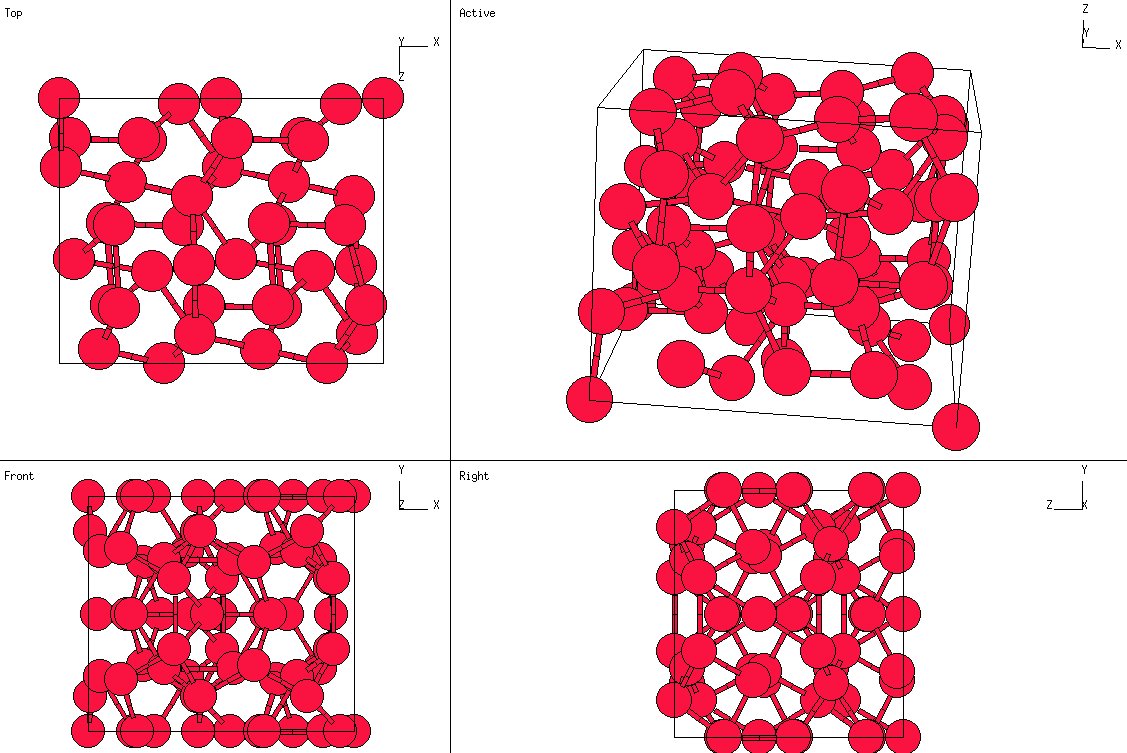

• see the structure from several perspectives;
• examine the structure with an external viewer; or
• download the coordinates of the atoms in these pictures in XYZ format.
• visualize the structure (Uses the JMOL Applet)

---

• This is the ``standard'' orientation of the βPu structure, as found in Pearson's Handbook. Donohue gives another orientation, as found here.

---

• Prototype: βPu
• Pearson Symbol: mC34
• Space Group: B2/m (Cartesian and lattice coordinate listings available)
• Number: 12
• Primitive Vectors:

  A1	=	½ a X - ½ b Y
  A2	=	½ a X - ½ b Y
  A3	=	c cos(β) X + c sin(β) Z

• Basis Vectors:

  B1	=		0		(Pu-I)	(2a)
  B2	=	- y2 A1 + y2 A2 + ½ A3	=	½ c cos(β) X + y2 b Y + ½ c sin(β) Z	(Pu-II)	(4h)
  B3	=	+ y2 A1 - y2 A2 + ½ A3	=	½ c cos(β) X - y2 b Y + ½ c sin(β) Z	(Pu-II)	(4h)
  B4	=	+ x3 A1 + x3 A2 + z3 A3	=	+ [x3 + z3 c cos(β)] X + z3 c sin(β) Z	(Pu-III)	(4i)
  B5	=	- x3 A1 - x3 A2 - z3 A3	=	- [x3 + z3 c cos(β)] X - z3 c sin(β) Z	(Pu-III)	(4i)
  B6	=	+ x4 A1 + x4 A2 + z4 A3	=	+ [x4 + z4 c cos(β)] X + z4 c sin(β) Z	(Pu-IV)	(4i)
  B7	=	- x4 A1 - x4 A2 - z4 A3	=	- [x4 + z4 c cos(β)] X - z4 c sin(β) Z	(Pu-IV)	(4i)
  B8	=	+ x5 A1 + x5 A2 + z5 A3	=	+ [x5 + z5 c cos(β)] X + z5 c sin(β) Z	(Pu-V)	(4i)
  B9	=	- x5 A1 - x5 A2 - z5 A3	=	- [x5 + z5 c cos(β)] X - z5 c sin(β) Z	(Pu-V)	(4i)
  B10	=	+ (x6 - y6)A1 + (x6 + y6)A2 + z6A3	=	+ [x6 + z6 c cos(β)]X + y6 bY + z6 c sin(β)Z	(Pu-VI)	(8j)
  B11	=	+ (x6 + y6)A1 + (x6 - y6)A2 + z6A3	=	+ [x6 + z6 c cos(β)]X - y6 bY + z6 c sin(β)Z	(Pu-VI)	(8j)
  B12	=	- (x6 + y6)A1 - (x6 - y6)A2 - z6A3	=	- [x6 + z6 c cos(β)]X + y6 bY - z6 c sin(β)Z	(Pu-VI)	(8j)
  B13	=	- (x6 - y6)A1 - (x6 + y6)A2 - z6A3	=	- [x6 + z6 c cos(β)]X - y6 bY - z6 c sin(β)Z	(Pu-VI)	(8j)
  B14	=	+ (x7 - y7)A1 + (x7 + y7)A2 + z7A3	=	+ [x7 + z7 c cos(β)]X + y7 bY + z7 c sin(β)Z	(Pu-VII)	(8j)
  B15	=	+ (x7 + y7)A1 + (x7 - y7)A2 + z7A3	=	+ [x7 + z7 c cos(β)]X - y7 bY + z7 c sin(β)Z	(Pu-VII)	(8j)
  B16	=	- (x7 + y7)A1 - (x7 - y7)A2 - z7A3	=	- [x7 + z7 c cos(β)]X + y7 bY - z7 c sin(β)Z	(Pu-VII)	(8j)
  B17	=	- (x7 - y7)A1 - (x7 + y7)A2 - z7A3	=	- [x7 + z7 c cos(β)]X - y7 bY - z7 c sin(β)Z	(Pu-VII)	(8j)

---

Go back to the Lanthanides & Actinides page.

Go back to Crystal Lattice Structure page.
