| Crystal Lattice Structures: | Reference Date: 5 Apr 2001 |
| Last Modified: 21 Oct 2004 |
You can now

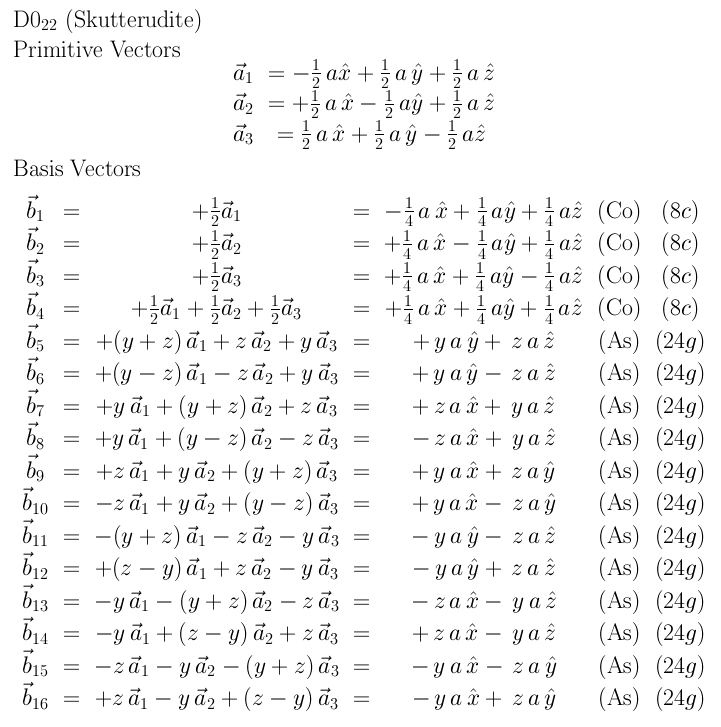

| A1 | = | -½ a X + ½ a Y + ½ a Z |
| A2 | = | + ½ a X - ½ a Y + ½ a Z |
| A3 | = | + ½ a X + ½ a Y - ½ a Z |
| B1 | = | ½ A1 | = | - ¼ a X + ¼ a Y + ¼ a Z | (Co) | (8c) |
| B2 | = | ½ A2 | = | + ¼ a X - ¼ a Y + ¼ a Z | (Co) | (8c) |
| B3 | = | ½ A3 | = | + ¼ a X + ¼ a Y - ¼ a Z | (Co) | (8c) |
| B4 | = | ½ A1 + ½ A2 + ½ A3 | = | + ¼ a X + ¼ a Y - ¼ a Z | (Co) | (8c) |
| B5 | = | + (y+z) A1 + z A2 + y A3 | = | + y a Y + z a Z | (As) | (24g) |
| B6 | = | + (y-z) A1 - z A2 + y A3 | = | + y a Y - z a Z | (As) | (24g) |
| B7 | = | + y A1 + (y+z) A2 + z A3 | = | + z a X + y a Z | (As) | (24g) |
| B8 | = | + y A1 + (y-z) A2 - z A3 | = | - z a X + y a Z | (As) | (24g) |
| B9 | = | + z A1 + y A2 + (y+z) A3 | = | + y a X + z a Y | (As) | (24g) |
| B10 | = | - z A1 + y A2 + (y-z) A3 | = | + y a X - z a Y | (As) | (24g) |
| B11 | = | - (y+z) A1 - z A2 - y A3 | = | - y a Y - z a Z | (As) | (24g) |
| B12 | = | + (z-y) A1 + z A2 - y A3 | = | - y a Y + z a Z | (As) | (24g) |
| B13 | = | - y A1 - (y+z) A2 - z A3 | = | - z a X - y a Z | (As) | (24g) |
| B14 | = | - y A1 + (z-y) A2 + z A3 | = | + z a X - y a Z | (As) | (24g) |
| B15 | = | - z A1 - y A2 - (y+z) A3 | = | - y a X - z a Y | (As) | (24g) |
| B16 | = | + z A1 - y A2 + (z-y) A3 | = | - y a X + z a Y | (As) | (24g) |
