The α ReO₃ (D0₉) Structure

You can now

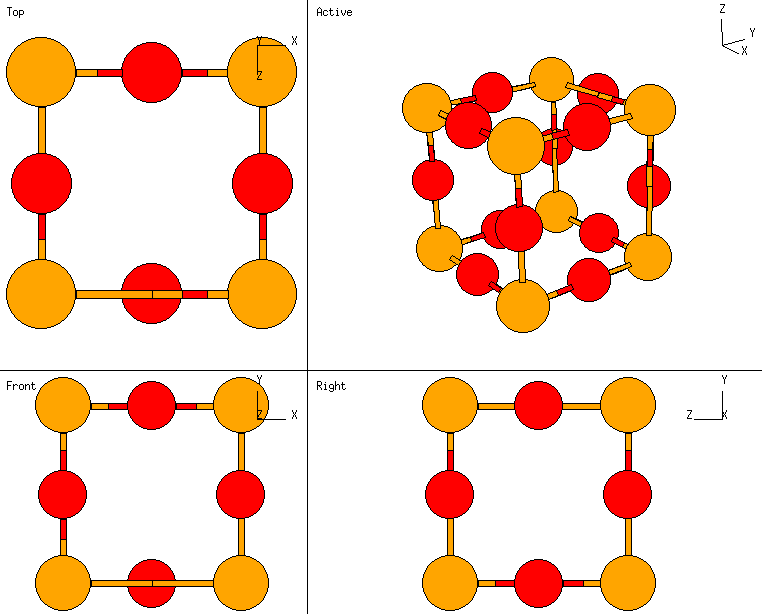

• see the structure from several perspectives;
• examine the structure with an external viewer; or
• download the coordinates of the atoms in these pictures in XYZ format.
• visualize the structure (Uses the JMOL Applet)

---

• This structure is just the Perovskite structure without the calcium atoms. To see this, shift the origin to (½ a , ½ a , ½ a).

---

• Prototype: ReO₃ (α)
• Pearson Symbol: cP4
• Strukturbericht Designation: D0₉
• Space Group: Pm3m (Cartesian and lattice coordinate listings available)
• Number: 221
• Other compounds with this Structure: Cu₃N, O₃W, O₃U
• Primitive Vectors:

  A1	=	a X
  A2	=	a Y
  A3	=	a Z

• Basis Vectors:

  B1	=	0			(Re)	(1a)
  B2	=	½ A1	=	½ a X	(O)	(3d)
  B3	=	½ A2	=	½ a Y	(O)	(3d)
  B4	=	½ A3	=	½ a Z	(O)	(3d)

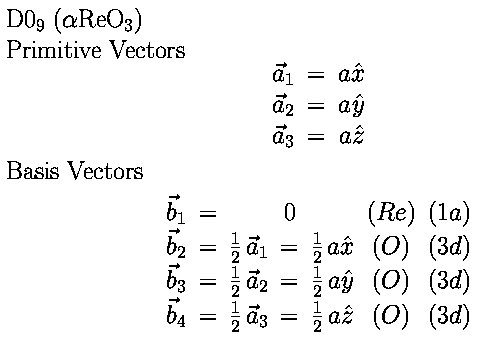

See these vectors in LaTeX output format.

---
