Crystal Lattice Structures:	Creation Date: 26 Dec 2002
	Last Modified:  6 June 2006

The MoNi₄ (D1_a) Structure

You can now

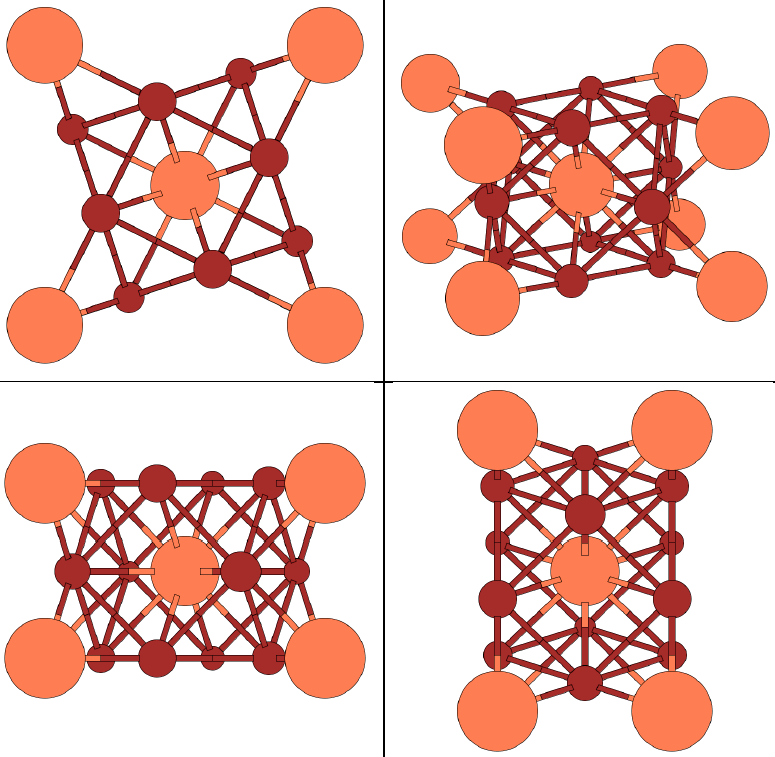

• see the structure from several perspectives;
• examine the structure with an external viewer; or
• download the coordinates of the atoms in these pictures in XYZ format.
• visualize the structure (Uses the JMOL Applet)

---

• 6 June 2006: The primitive lattice vectors were written for a body-centered orthorhombic lattice, but the unit cell is body-centered tetragonal. The vectors used to generate the visualization are correct.

---

• Prototype: MoNi₄
• Pearson Symbol: tI10
• Strukturbericht Designation: D1_a
• Space Group: I4/m (Cartesian and lattice coordinate listings available)
• Number: 87
• Reference: Pearson's Handbook, Vol. IV.
• Other compounds with this structure: Ag₄Lu, Ag₄Sc, Au₄Cr, Au₄Er, Au₄Ho, Au₄Lu, Au₄Mn, Au₄V, Au₄Yb, Ni₄W
• Primitive Vectors:

  A1	=	a X
  A2	=	a Y
  A3	=	½ a X + ½ a Y + ½ c Z

• Basis Vectors:

  B1	=		0		(Mo)	(2a)
  B2	=	+ x A1 + y A2	=	+ x a X + y a Y	(Ni)	(8h)
  B3	=	- y A1 + x A2	=	- y a X + x a Y	(Ni)	(8h)
  B4	=	- x A1 - y A2	=	- x a X - y a Y	(Ni)	(8h)
  B5	=	+ y A1 - x A2	=	+ y a X - x a Y	(Ni)	(8h)

---
