Crystal Lattice Structures:	Creation Date:  8 Jun 2003
	Last Modified: 21 Oct 2004

The Sb₂O₃ (D5₁₁) Structure

You can now

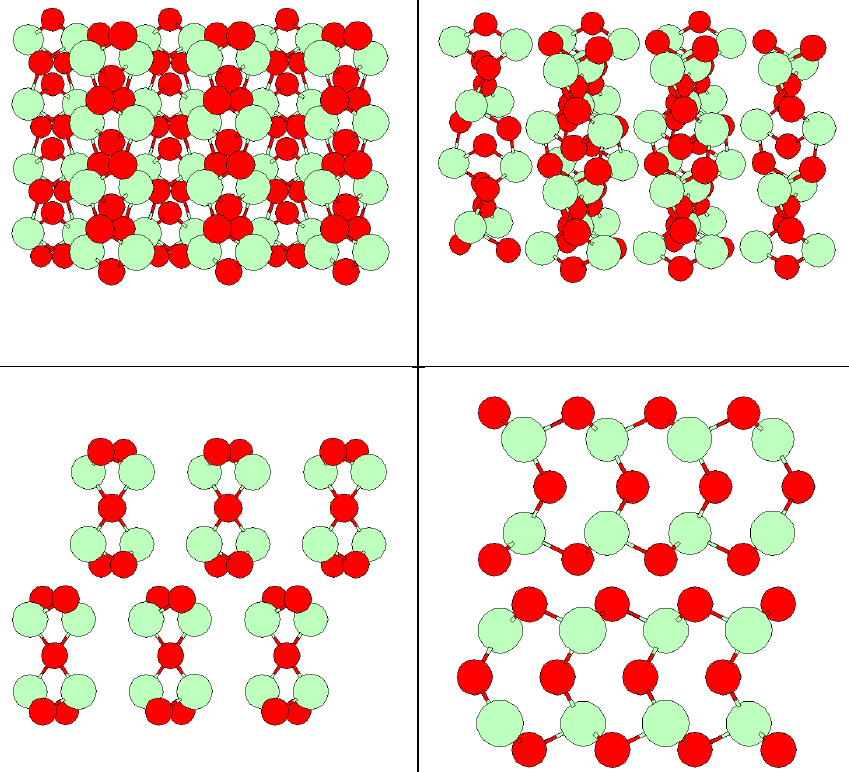

• see the structure from several perspectives;
• examine the structure with an external viewer; or
• download the coordinates of the atoms in these pictures in XYZ format.
• visualize the structure (Uses the JMOL Applet)

---

• Prototype: Sb₂O₃
• Pearson Symbol: oP20
• Strukturbericht Designation: D5₁₁
• Space Group: Pccn (Cartesian and lattice coordinate listings available)
• Number: 56
• Reference: Villars and Calvert, Pearson's Handbook, vol. IV, p. 4758.
• Primitive Vectors:

  A1	=	a X
  A2	=	b Y
  A3	=	c Z

• Basis Vectors:

  B1	=	+ ¼ A1 + ¼ A2 + z1 A3	=	+ ¼ a X + ¼ b Y + z1 c Z	(O-I)	(4c)
  B2	=	+ ¾ A1 + ¾ A2 + (½ - z1) A3	=	+ ¾ a X + ¾ b Y + (½ - z1) c Z	(O-I)	(4c)
  B3	=	+ ¾ A1 + ¾ A2 - z1 A3	=	+ ¾ a X + ¾ b Y - z1 c Z	(O-I)	(4c)
  B4	=	+ ¼ A1 + ¼ A2 + (½ + z1) A3	=	+ ¼ a X + ¼ b Y + (½ + z1) c Z	(O-I)	(4c)
  B5	=	+ x2 A1 + y2 A2 + z2 A3	=	+ x2 a X + y2 b Y + z2 c Z	(O-II)	(8e)
  B6	=	+ (½ - x2) A1 + (½ - y2) A2 + z2 A3	=	+ (½ - x2) a X + (½ - y2) b Y + z2 c Z	(O-II)	(8e)
  B7	=	- x2 A1 + (½ + y2) A2 + (½ - z2) A3	=	- x2 a X + (½ + y2) b Y + (½ - z2) c Z	(O-II)	(8e)
  B8	=	+ (½ + x2) A1 - y2 A2 + (½ - z2) A3	=	+ (½ + x2) a X - y2 b Y + (½ - z2) c Z	(O-II)	(8e)
  B9	=	- x2 A1 - y2 A2 - z2 A3	=	- x2 a X - y2 b Y - z2 c Z	(O-II)	(8e)
  B10	=	+ (½ + x2) A1 + (½ + y2) A2 - z2 A3	=	+ (½ + x2) a X + (½ + y2) b Y - z2 c Z	(O-II)	(8e)
  B11	=	+ x2 A1 + (½ - y2) A2 + (½ + z2) A3	=	+ x2 a X + (½ - y2) b Y + (½ + z2) c Z	(O-II)	(8e)
  B12	=	+ (½ - x2) A1 + y2 A2 + (½ + z2) A3	=	+ (½ - x2) a X + y2 b Y + (½ + z2) c Z	(O-II)	(8e)
  B13	=	+ x3 A1 + y3 A2 + z3 A3	=	+ x3 a X + y3 b Y + z3 c Z	(Sb)	(8e)
  B14	=	+ (½ - x3) A1 + (½ - y3) A2 + z3 A3	=	+ (½ - x3) a X + (½ - y3) b Y + z3 c Z	(Sb)	(8e)
  B15	=	- x3 A1 + (½ + y3) A2 + (½ - z3) A3	=	- x3 a X + (½ + y3) b Y + (½ - z3) c Z	(Sb)	(8e)
  B16	=	+ (½ + x3) A1 - y3 A2 + (½ - z3) A3	=	+ (½ + x3) a X - y3 b Y + (½ - z3) c Z	(Sb)	(8e)
  B17	=	- x3 A1 - y3 A2 - z3 A3	=	- x3 a X - y3 b Y - z3 c Z	(Sb)	(8e)
  B18	=	+ (½ + x3) A1 + (½ + y3) A2 - z3 A3	=	+ (½ + x3) a X + (½ + y3) b Y - z3 c Z	(Sb)	(8e)
  B19	=	+ x3 A1 + (½ - y3) A2 + (½ + z3) A3	=	+ x3 a X + (½ - y3) b Y + (½ + z3) c Z	(Sb)	(8e)
  B20	=	+ (½ - x3) A1 + y3 A2 + (½ + z3) A3	=	+ (½ - x3) a X + y3 b Y + (½ + z3) c Z	(Sb)	(8e)

---
