The AgAuTe₄ (E1_b) Structure

You can now

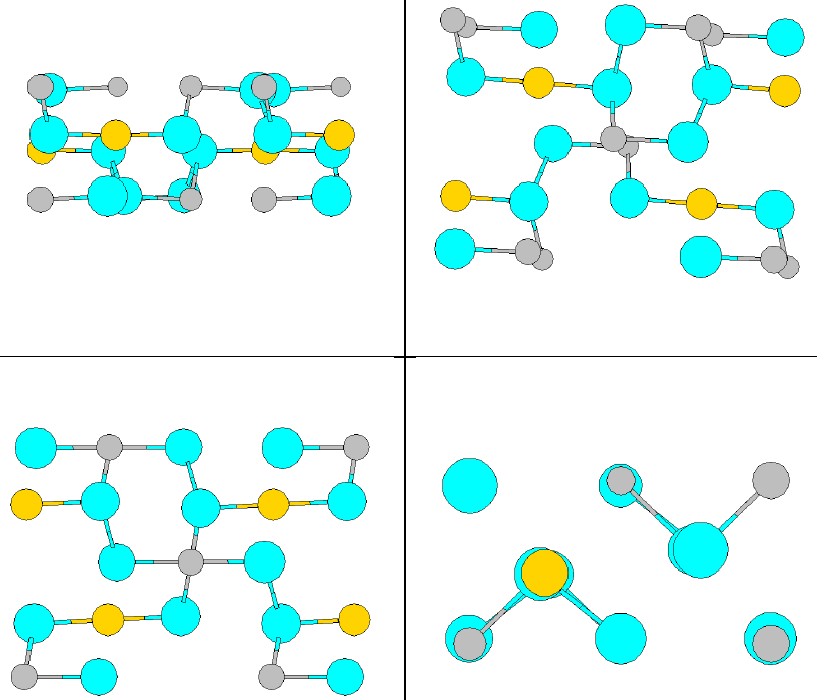

• see the structure from several perspectives;
• examine the structure with an external viewer; or
• download the coordinates of the atoms in these pictures in XYZ format.
• visualize the structure (Uses the JMOL Applet)

---

• 26 May 2003: the Te atoms sit on the general (4g) sites of P2/c. The positions are correct, but the we had labeled the sites (4f).

---

• Prototype: AgAuTe₄
• Pearson Symbol: mP12
• Strukturbericht Designation: E1_b
• Space Group: P2/c (Cartesian and lattice coordinate listings available)
• Number: 13
• Reference: Villars and Calvert, Pearson's Handbook Vol. I, p 501.
• Primitive Vectors:

  A1	=	a X
  A2	=	b Y
  A3	=	c cos(β) X + c sin(β) Z

• Basis Vectors:

  B1	=		0		(Au)	(2a)
  B2	=	½ A3	=	½ c cos(β) X + ½ c sin(β) Z	(Au)	(2a)
  B3	=	+ y1 A2 + ¼ A3	=	+ ¼ c cos(β) X + y1 b Y + ¼ c sin(β) Z	(Ag)	(2e)
  B4	=	- y1 A2 - ¼ A3	=	- ¼ c cos(β) X - y1 b Y - ¼ c sin(β) Z	(Ag)	(2e)
  B5	=	+ x2 A1 + y2 A2 + z2 A3	=	+ [x2 a + z2 c cos(β)] X + y2 b Y + z2 c sin(β) Z	(Te-I)	(4g)
  B6	=	- x2 A1 + y2 A2 + (½ - z2) A3	=	- [x2 a - (½ - z2) c cos(β) X + y2 b Y + (½ - z2) c sin(β) Z	(Te-I)	(4g)
  B7	=	- x2 A1 - y2 A2 - z2 A3	=	- [x2 a + z2 c cos(β)] X - y2 b Y - z2 c sin(β) Z	(Te-I)	(4g)
  B8	=	+ x2 A1 - y2 A2 + (½ + z2) A3	=	+ [x2 a + (½ + z2) c cos(β) X - y2 b Y + (½ + z2) c sin(β) Z	(Te-I)	(4g)
  B9	=	+ x3 A1 + y3 A2 + z3 A3	=	+ [x3 a + z3 c cos(β)] X + y3 b Y + z3 c sin(β) Z	(Te-II)	(4g)
  B10	=	- x3 A1 + y3 A2 + (½ - z3) A3	=	- [x3 a - (½ - z3) c cos(β) X + y3 b Y + (½ - z3) c sin(β) Z	(Te-II)	(4g)
  B11	=	- x3 A1 - y3 A2 - z3 A3	=	- [x3 a + z3 c cos(β)] X - y3 b Y - z3 c sin(β) Z	(Te-II)	(4g)
  B12	=	+ x3 A1 - y3 A2 + (½ + z3) A3	=	+ [x3 a + (½ + z3) c cos(β) X - y3 b Y + (½ + z3) c sin(β) Z	(Te-II)	(4g)

---
