The Cu₃S₄ V (Sulvanite, H2₄) Structure

You can now

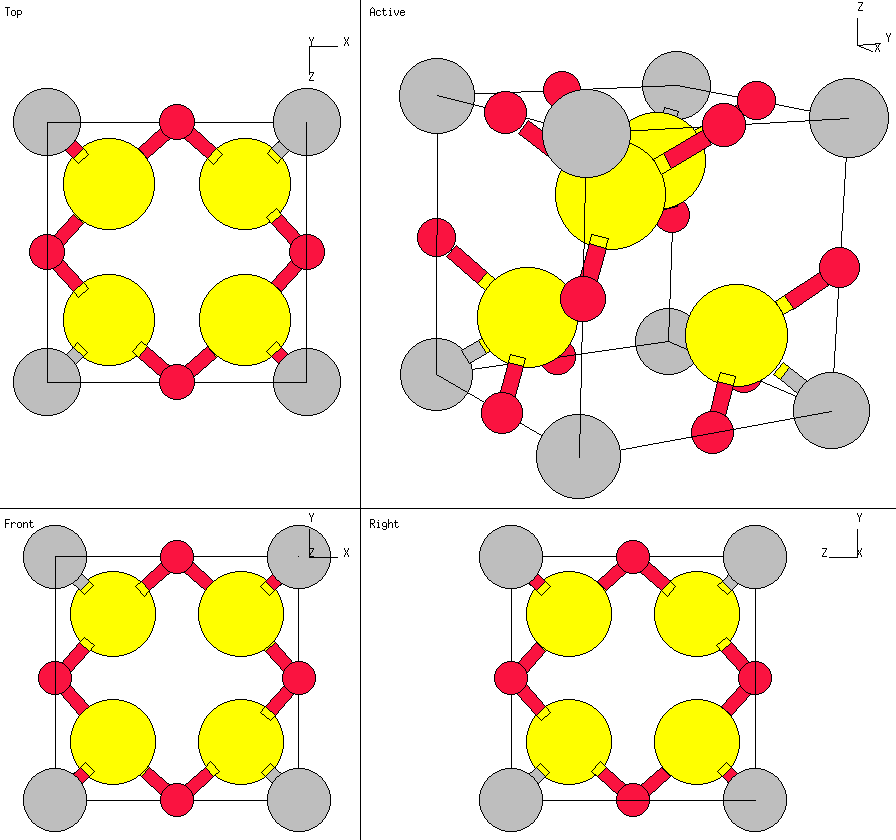

• see the structure from several perspectives;
• examine the structure with an external viewer; or
• download the coordinates of the atoms in these pictures in XYZ format.
• visualize the structure (Uses the JMOL Applet)

---

• This structure is very similar to AsCu₃S₄, except that in this case the Copper atoms are on the cubic edges [the (3d) sites] rather than the cubic faces [the (3c) sites].

---

• Prototype: Cu₃S₄V
• Pearson Symbol: cP8
• Strukturbericht Designation: H2₄
• Space Group: P43m (Cartesian and lattice coordinate listings available)
• Number: 215
• Other compounds with this structure: Cu₃S₄Nb, Cu₃S₄Ta, Cu₃Se₄Nb, Cu₃Te₄Ta, Cu₃Te₄V
• Primitive Vectors:

  A1	=	a X
  A2	=	a Y
  A3	=	a Z

• Basis Vectors:

  B1	=		0		(V)	(1a)
  B2	=	½ A1	=	½ a X	(Cu)	(3d)
  B3	=	½ A2	=	½ a Y	(Cu)	(3d)
  B4	=	½ A3	=	½ a Z	(Cu)	(3d)
  B5	=	+ x A1 + x A2 + x A3	=	+ x a X + x a Y + x a Z	(S)	(4e)
  B6	=	+ x A1 - x A2 - x A3	=	+ x a X - x a Y - x a Z	(S)	(4e)
  B7	=	- x A1 + x A2 - x A3	=	- x a X + x a Y - x a Z	(S)	(4e)
  B8	=	- x A1 - x A2 + x A3	=	- x a X - x a Y + x a Z	(S)	(4e)

---
