Crystal Lattice Structures: | Creation Date: 4 Dec 2001 |
Last Modified: 18 Feb 2006 |
The basis vectors in this file, while probably correct, have an origin that does not correspond to the Wyckoff positions for the second setting of space group 141. The corect settings are found on the new Anatase (C5) page. Hopefully this did not lead anyone astray.

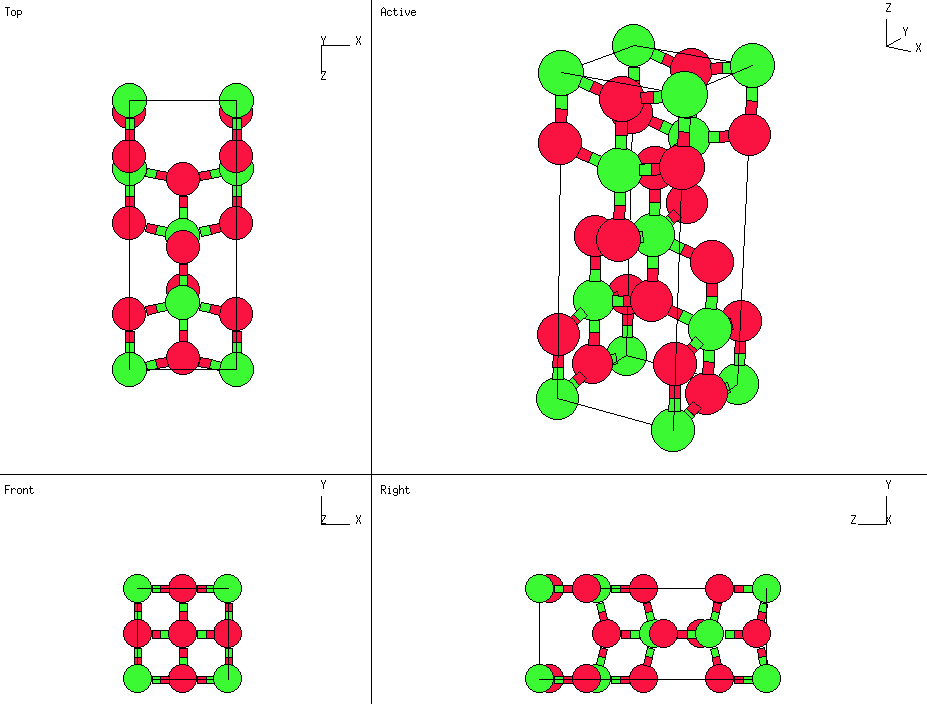

You can now
A1 | = | a X |
A2 | = | a Y |
A3 | = | ½ a X + ½ a Y + ½ c Z |
B1 | = | - 1/8 A1 - 3/8 A2 + 1/4 A3 | = | - 1/4 a Y + 1/8 c Z | (4a) | (Ti) |
B2 | = | + 1/8 A1 + 3/8 A2 - 1/4 A3 | = | + 1/4 a Y - 1/8 c Z | (4a) | (Ti) |
B3 | = | + (x - 1/8) A1 + (x + 1/8) A2 + (1/4 - 2 x) A3 | = | + 1/4 a Y + (1/8 - x) c Z | (8e) | (O) |
B4 | = | - (x - 1/8) A1 - (x + 1/8) A2 - (1/4 - 2 x) A3 | = | - 1/4 a Y - (1/8 - x) c Z | (8e) | (O) |
B5 | = | + (1/8 + x) A1 - (1/8 - x)A2 + (3/4 - 2 x) A3 | = | + 1/2 a X + 1/4 a Y + (3/8 - x) c Z | (8e) | (O) |
B6 | = | - (1/8 + x) A1 + (1/8 - x)A2 - (3/4 - 2 x) A3 | = | - 1/2 a X - 1/4 a Y - (3/8 - x) c Z | (8e) | (O) |
