The Simple Hexagonal Lattice (A_f)

You can now

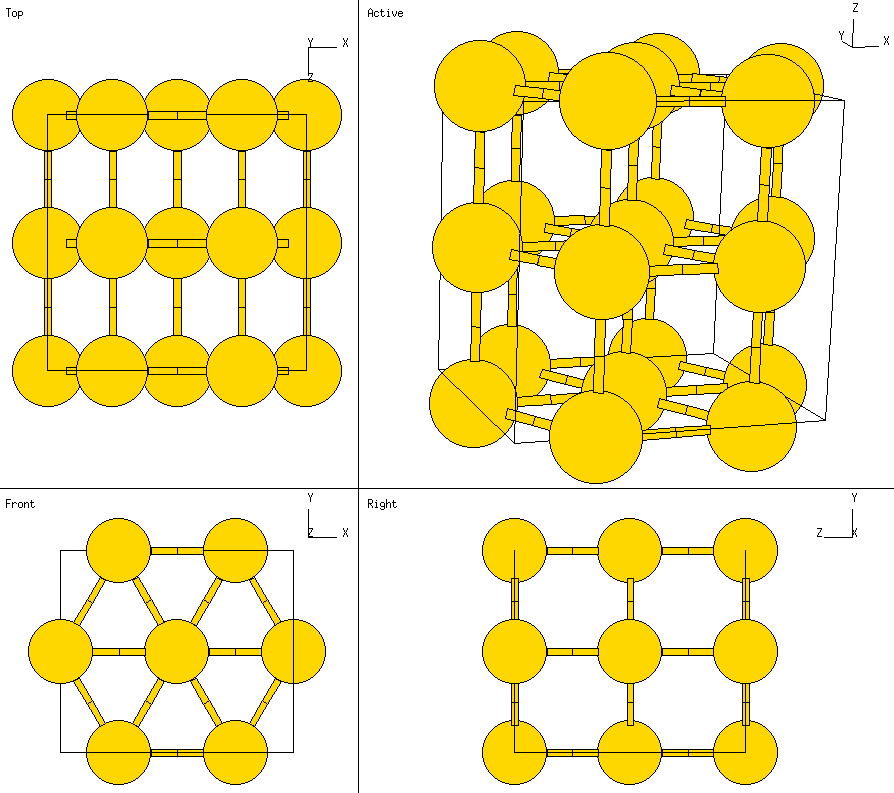

• see the structure from several perspectives;
• examine the structure with an external viewer; or
• download the coordinates of the atoms in these pictures in XYZ format.
• visualize the structure (Uses the JMOL Applet)

---

• Unlike the simple cubic lattice, there are no elements which take this structure as the ground state. There is a metastable Silicon phase with this structure.

---

• Prototype: γHgSn_6-10 (disordered)
• Pearson Symbol: hP1
• Strukturbericht Designation: A_f
• Space Group: P6/mmm (Cartesian and lattice coordinate listings available)
• Number: 191
• Reference: Pearson, Alloys, p 478
• Other systems with this structure: Si (metastable), disordered phases of BiIn, CdSn₁₉, In₇Sb₃, InSb

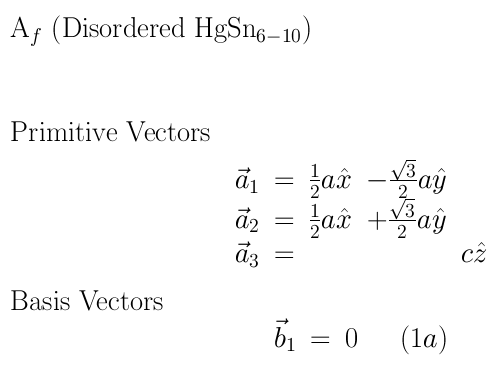

• Primitive Vectors:

  A1	=	½ a X - ½ 31/2 a Y
  A2	=	½ a X + ½ 31/2 a Y
  A3	=	c Z

• Basis Vector:

  B1 = 0

  (1a)

See these vectors in LaTeX output format.

---
