Crystal Lattice Structures:	Creation Date:  9 Apr 2002
	Last Modified: 21 Oct 2004

A Hypothetical cF108 Austenite Structure

You can now

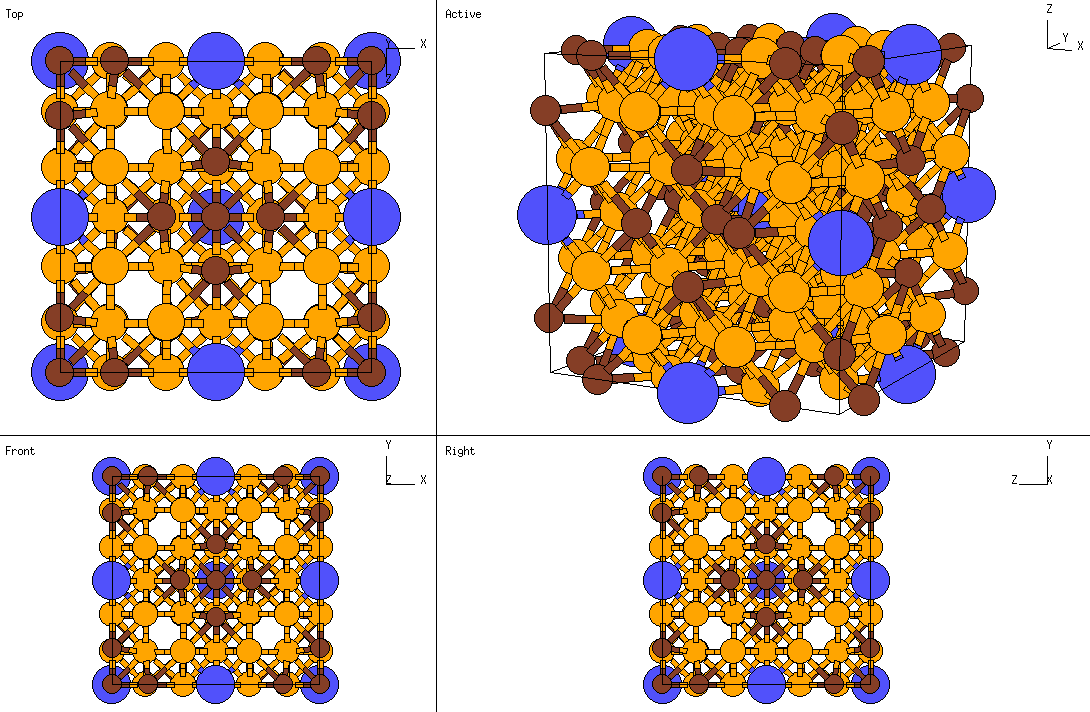

• see the structure from several perspectives;
• examine the structure with an external viewer; or
• download the coordinates of the atoms in these pictures in XYZ format.
• visualize the structure (Uses the JMOL Applet)

---

• Austenite is steel with an fcc structure. This structure represents one possible ordering which might be found in an Fe-Ni-Cr steel. Note that it is not meant to represent a real steel.
• Removing the (4a) atom gives a structure which can be used to calculate the vacancy formation energy in fcc elemental solids.
• If we set x₁ = 1/3, x₂ = 2/3, and x₃ = 2/3, the atoms are on the sites of an fcc lattice with lattice constant a_fcc = 1/3 a.

---

• Prototype: CrFe₁₈Ni₈ (hypothetical)
• Pearson Symbol: cF108
• Space Group: Fm3m (Cartesian and lattice coordinate listings available)
• Number: 225
• Primitive Vectors:

  A1	=	½ a Y + ½ a Z
  A2	=	½ a X + ½ a Z
  A3	=	½ a X + ½ a Y

• Basis Vectors:

  B1	=		0		(Cr)	(4a)
  B2	=	+ 2 x1 A1	=	+ x1 a Y + x1 a Z	(Fe-I)	(48h)
  B3	=	+ 2 x1 A2	=	+ x1 a X + x1 a Z	(Fe-I)	(48h)
  B4	=	+ 2 x1 A3	=	+ x1 a X + x1 a Y	(Fe-I)	(48h)
  B5	=	- 2 x1 A2 + 2 x1 A3	=	+ x1 a Y - x1 a Z	(Fe-I)	(48h)
  B6	=	- 2 x1 A1 + 2 x1 A3	=	+ x1 a X - x1 a Z	(Fe-I)	(48h)
  B7	=	- 2 x1 A1 + 2 x1 A2	=	+ x1 a X - x1 a Y	(Fe-I)	(48h)
  B8	=	+ 2 x1 A2 - 2 x1 A3	=	- x1 a Y + x1 a Z	(Fe-I)	(48h)
  B9	=	+ 2 x1 A1 - 2 x1 A3	=	- x1 a X + x1 a Z	(Fe-I)	(48h)
  B10	=	+ 2 x1 A1 - 2 x1 A2	=	- x1 a X + x1 a Y	(Fe-I)	(48h)
  B11	=	- 2 x1 A1	=	- x1 a Y - x1 a Z	(Fe-I)	(48h)
  B12	=	- 2 x1 A2	=	- x1 a X - x1 a Z	(Fe-I)	(48h)
  B13	=	- 2 x1 A3	=	- x1 a X - x1 a Y	(Fe-I)	(48h)
  B14	=	- x2 A1 + x2 A2 + x2 A3	=	+ x2 a X	(Fe-II)	(24e)
  B15	=	+ x2 A1 - x2 A2 + x2 A3	=	+ x2 a Y	(Fe-II)	(24e)
  B16	=	+ x2 A1 + x2 A2 - x2 A3	=	+ x2 a Z	(Fe-II)	(24e)
  B17	=	+ x2 A1 - x2 A2 - x2 A3	=	- x2 a X	(Fe-II)	(24e)
  B18	=	- x2 A1 + x2 A2 - x2 A3	=	- x2 a Y	(Fe-II)	(24e)
  B19	=	- x2 A1 - x2 A2 + x2 A3	=	- x2 a Z	(Fe-II)	(24e)
  B20	=	+ x3 A1 + x3 A2 + x3 A3	=	+ x3 a X + x3 a Y + x3 a Z	(Ni)	(32f)
  B21	=	+ 3 x3 A1 - x3 A2 - x3 A3	=	- x3 a X + x3 a Y + x3 a Z	(Ni)	(32f)
  B22	=	- x3 A1 + 3 x3 A2 - x3 A3	=	+ x3 a X - x3 a Y + x3 a Z	(Ni)	(32f)
  B23	=	- x3 A1 - x3 A2 + 3 x3 A3	=	+ x3 a X + x3 a Y - x3 a Z	(Ni)	(32f)
  B24	=	- x3 A1 - x3 A2 - x3 A3	=	- x3 a X - x3 a Y - x3 a Z	(Ni)	(32f)
  B25	=	- 3 x3 A1 + x3 A2 + x3 A3	=	+ x3 a X - x3 a Y - x3 a Z	(Ni)	(32f)
  B26	=	+ x3 A1 - 3 x3 A2 + x3 A3	=	- x3 a X + x3 a Y - x3 a Z	(Ni)	(32f)
  B27	=	+ x3 A1 + x3 A2 - 3 x3 A3	=	- x3 a X - x3 a Y + x3 a Z	(Ni)	(32f)

---

Go back to the cubic close-packed structures page.

Go back to Crystal Lattice Structure page.

Structures indexed by: Strukturbericht Symbol Pearson Symbol Space Group Prototype
