The Tenorite (CuO, B26) Structure

You can now

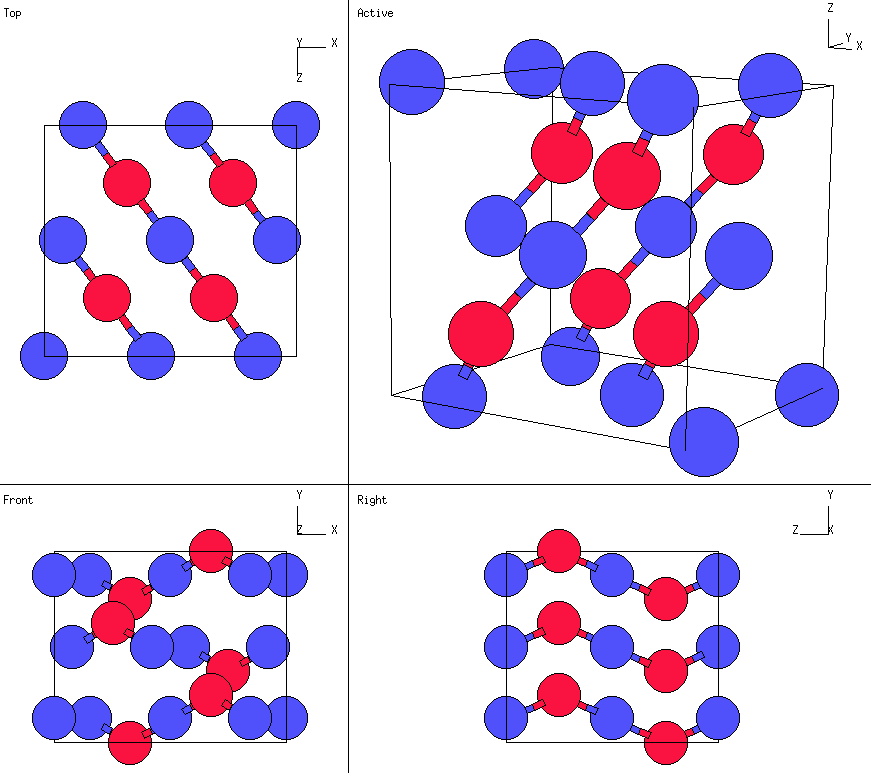

• see the structure from several perspectives;
• examine the structure with an external viewer; or
• download the coordinates of the atoms in these pictures in XYZ format.
• visualize the structure (Uses the JMOL Applet)

---

• When a=b=c and β = 90° the Copper atoms are on the sites of an fcc lattice.

---

• Prototype: CuO
• Pearson Symbol: mC8
• Strukturbericht Designation: B26
• Space Group: C2/c (Cartesian and lattice coordinate listings available)
• Number: 15
• Other compounds with this structure: AgO
• Primitive Vectors:

  A1	=	½ a X - ½ b Y
  A2	=	½ a X + ½ b Y
  A3	=	c cos(β) X + c sin(β) Z

• Basis Vectors:

  B1	=	½ A2	=	¼ a X + ¼ b Y	(Cu)	(4c)
  B2	=	½ A1 + ½ A3	=	[¼ a + ½ c cos(β)] X - ¼ b Y + ½ c sin(β) Z	(Cu)	(4c)
  B3	=	- y A1 + y A2 + ¼ A3	=	+ ¼ c cos(β) X + y b Y + ¼ c sin(β) Z	(O)	(4e)
  B4	=	+ y A1 - y A2 - ¼ A3	=	- ¼ c cos(β) X - y b Y - ¼ c sin(β) Z	(O)	(4e)

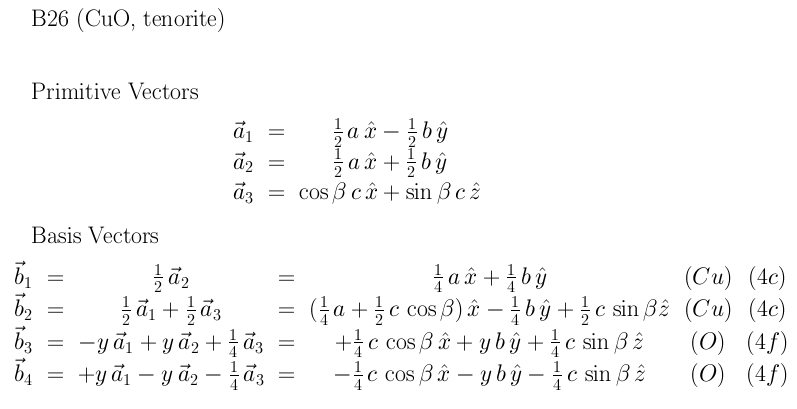

See these vectors in LaTex output format.

---
