The Zincblende (B3) Structure

You can now

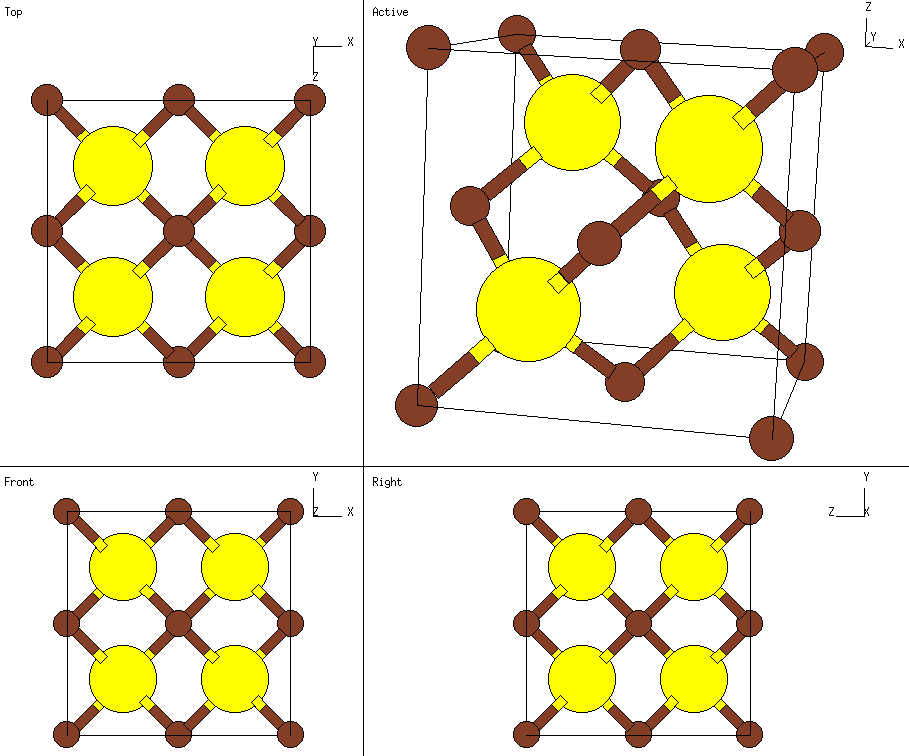

• see the structure from several perspectives;
• examine the structure with an external viewer; or
• download the coordinates of the atoms in these pictures in XYZ format.
• visualize the structure (Uses the JMOL Applet)

---

• This is the cubic analog of the wurtzite lattice, i.e. the stacking of the ZnS dimers along the <111> direction is ABCABC...
• This is also a two-component analog of the diamond structure, without the inversion symmetry in the middle of the bond.

---

• Prototype: ZnS
• Pearson Symbol: cF8
• Strukturbericht Designation: B3
• Space Group: F43m (Cartesian and lattice coordinate listings available)
• Number: 216
• Reference: Wyckoff Vol. I, pp 108-110
• Other compounds with this Structure: AgI, AlAs, AlP, AlSb, BAs, BN, BP, BeS, BeSe, BeTe, CdS, CuBr, CuCl, CuF, CuI, GaAs, GaP, GaSb, HgS, HgSe, HgTe, INAs, InP, MnS, MnSe, SiC, ZnSe, ZnTe
• Primitive Vectors:

  A1	=	½ a Y + ½ a Z
  A2	=	½ a X + ½ a Z
  A3	=	½ a X + ½ a Y

• Basis Vectors:

  B1	=	0			(Zn)	(4a)
  B2	=	¼ A1 + ¼ A2 + ¼ A3	=	¼ a X + ¼ a Y + ¼ aZ	(S)	(4c)

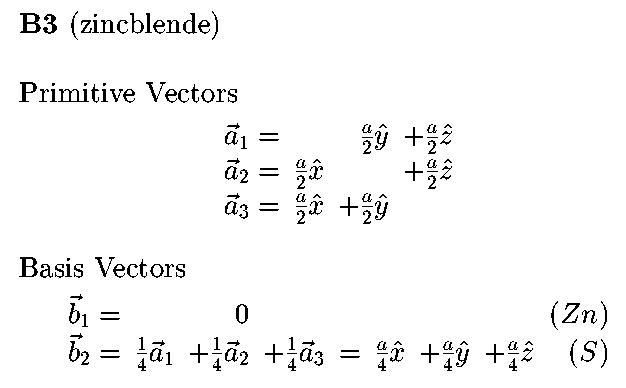

See these vectors in LaTex output format.

---
