The Al₃Ni₂ (D5₁₉) Structure

You can now

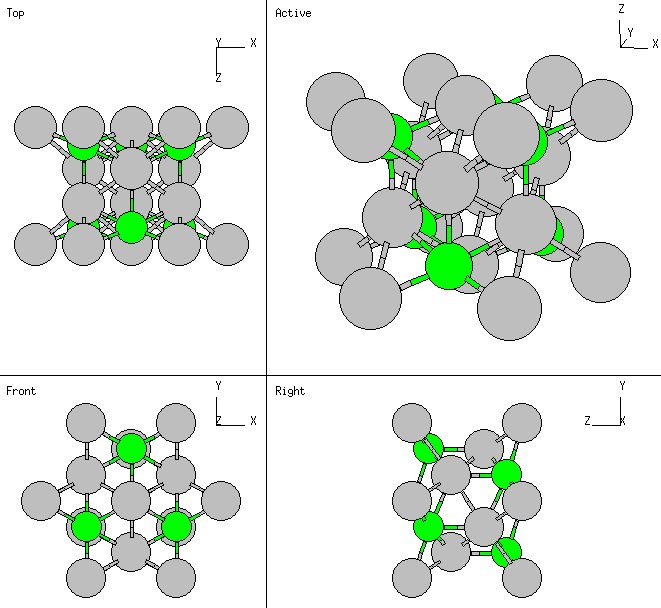

• see the structure from several perspectives;
• examine the structure with an external viewer; or
• download the coordinates of the atoms in these pictures in XYZ format.
• visualize the structure (Uses the JMOL Applet)

---

• Either the 3 Al atoms or Al (1a) and the Ni atoms form a trigonal omega structure.
• Using the choices of internal parameters for Al₃Ni₂, this can be viewed as a five-layer close-packed unit cell with stacking ABCBCA.
• Pearson's Handbook does not give internal coordinates for Al₃Ni₂, so we use the similar Al₃Pd₂ structure.

---

• Prototype: Al₃Ni₂
• Pearson Symbol: hP5
• Strukturbericht Designation: D5₁₉
• Space Group: P3m1 (Cartesian and lattice coordinate listings available)
• Number: 164
• Reference: Villars and Calvert, Pearson's Handbook, Vol. I.
• Other Compounds with this Structure: Al₃Cu₂, Al₃Pd₂, Al₃Pt₂, Al₃In₂, Al₃Tc₂, In₃Al₂, In₃Pd₂, In₃Pt₂, Ga₃Pt₂

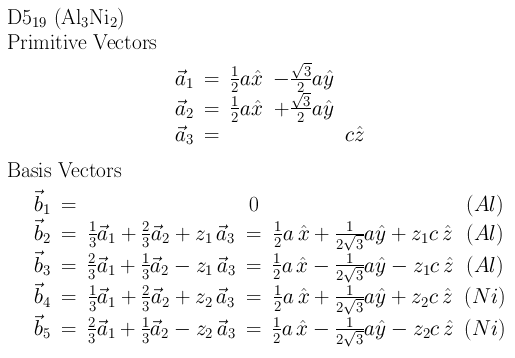

• Primitive Vectors:

  A1	=	½ a X - ½ 3½ a Y
  A2	=	½ a X + ½ 3½ a Y
  A3	=	c Z

• Basis Vectors:

  B1	=		0		(Al)	(1a)
  B2	=	1/3 A1 + 2/3 A2 + z1 A3	=	½ aX + 12-½ a Y + z1 c Z	(Al)	(2d)
  B3	=	2/3 A1 + 1/3 A2 - z1 A3	=	½ a X - 12-½ a Y - z1 c Z	(Al)	(2d)
  B4	=	1/3 A1 + 2/3 A2 + z2 A3	=	½ aX + 12-½ a Y + z2 c Z	(Ni)	(2d)
  B5	=	2/3 A1 + 1/3 A2 - z2 A3	=	½ a X - 12-½ a Y - z2 c Z	(Ni)	(2d)

See these vectors as LaTeX output.

---
